Product CatalogPart Number
LTST-G563EGBW
Manufacturer
Lite-On Inc.Description
LED RGB DIFFUSED 6PLCC SMD
Datasheet
DatasheetPackage
6-SMD, J-Lead
In Stock
15,831 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

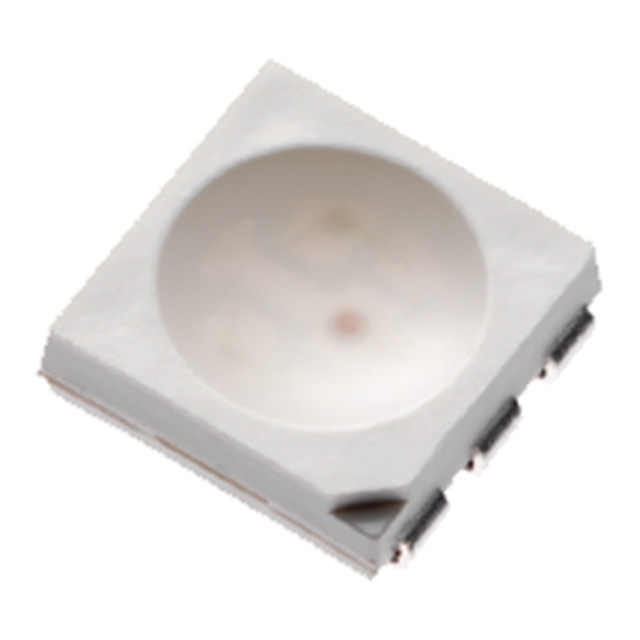

LTST-G563EGBW
LTST-G563EGBW
lmages are for reference only.Payment Methods
Delivery Services
Red, Green, Blue (RGB) 623nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2.2V Red, 3.3V Green, 3.3V Blue 6-SMD, J-Lead
Quick Inquiry
LTST-G563EGBW
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Lite-On Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 840mcd Red, 2100mcd Green, 420mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | 4.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.2V Red, 3.3V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 623nm Red, 525nm Green, 470nm Blue |
| Wavelength - Peak | 630nm Red, 518nm Green, 468nm Blue |
| Features | - |
| Package / Case | 6-SMD, J-Lead |
| Supplier Device Package | 6-PLCC |
| Size / Dimension | 5.00mm L x 5.00mm W |
| Height (Max) | 1.60mm |
| Base Product Number | LTST-G563 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
|
| Part Number | LTST-G563EGBW-HM | LTSN-B32JEGBB6 | LTSN-E263CEGBK | LTSN-N213EGBW |
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | LED TOP RED 630NM PLCC SMD | LED RGB DIFFUSED SMD | LED RGB CLEAR 4SMD | LED RGB DIFFUSED 4SMD |
| Series | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
