LVE-45-300-R-01-10-S

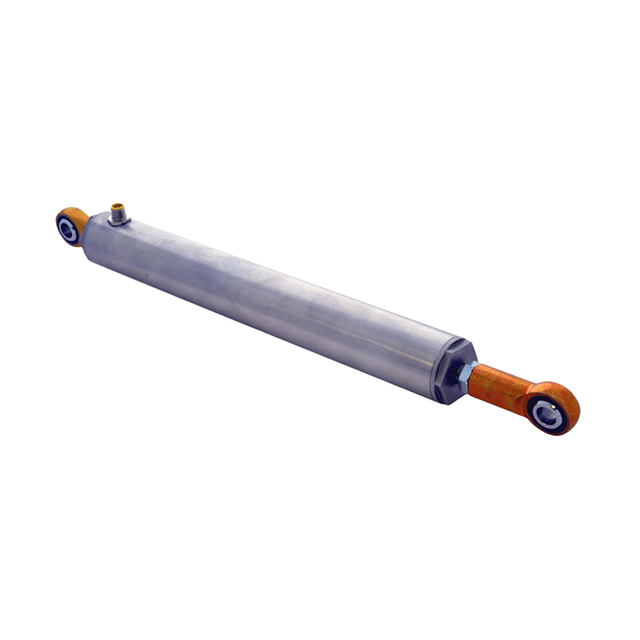

lmages are for reference only.LVE-45-300-R-01-10-S
SENSOR LINEAR 304.8MM CONNECTOR
DatasheetCylinder
91,842 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LVIT (Linear Variable Inductance Transducer) Sensor Linear Position Round Shaft Connector
LVE-45-300-R-01-10-S
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Alliance Sensors Group |
| Series | LV-45 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Linear Position |
| Technology | LVIT (Linear Variable Inductance Transducer) |
| Rotation Angle - Electrical, Mechanical | - |
| Linear Range | 0 ~ 304.80mm (0 ~ 12.00") |
| Output | 0 V ~ 10 V |
| Output Signal | - |
| Actuator Type | Round Shaft |
| Linearity | ±0.15% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 0V ~ 10V |
| Mounting Type | Chassis Mount |
| Termination Style | Connector |
| Operating Temperature | -20°C ~ 85°C |
| Package / Case | Cylinder |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LVE-45-100-R-01-10-S | LVE-45-150-R-01-10-S | LVE-45-200-R-01-10-S | LVE-45-250-R-01-10-S |
| Manufacturer | Alliance Sensors Group | Alliance Sensors Group | Alliance Sensors Group | Alliance Sensors Group |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR LINEAR 101.6MM CONNECTOR | SENSOR LINEAR 152.4MM CONNECTOR | SENSOR LINEAR 203.2MM CONNECTOR | SENSOR LINEAR 254MM CONNECTOR |
| Series | LV-45 | LV-45 | LV-45 | LV-45 |
| Packaging | Tube | Tube | Tube | Tube |
