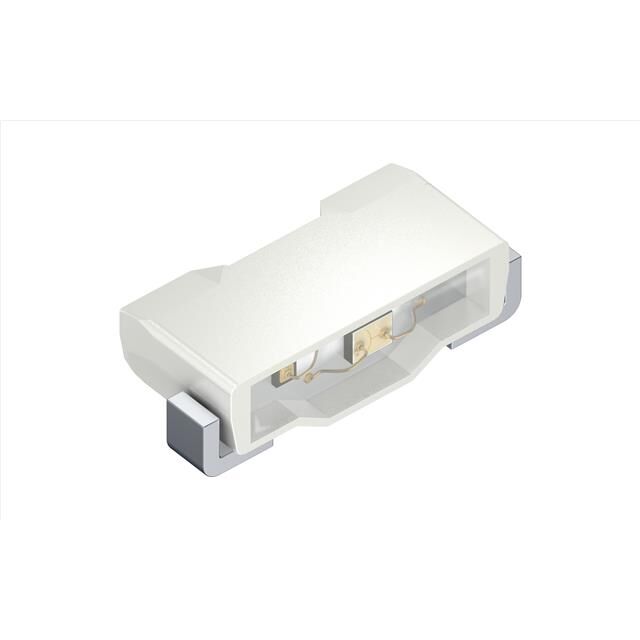

LW Y1SG-AFBF-EKFM-1-Z
lmages are for reference only.LW Y1SG-AFBF-EKFM-1-Z
LED COOL WHITE DIFFUSED SMD R/A
Datasheet2-SMD, No Lead
46,690 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
White, Cool 8200K LED Indication - Discrete 3.3V 2-SMD, No Lead
LW Y1SG-AFBF-EKFM-1-Z
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | ams-OSRAM USA INC. |
| Series | Micro SIDELED® 2808 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | White, Cool |
| Configuration | Standard |
| Lens Color | Yellow |
| Lens Transparency | Diffused |
| Millicandela Rating | 1500mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.80mm x 0.60mm |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 8200K |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 2-SMD, No Lead |
| Supplier Device Package | SMD |
| Size / Dimension | 2.50mm L x 0.80mm W |
| Height (Max) | 0.90mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LW Y1SG-AFBF-GKJM-1-Z | LW Y1SG-AEBE-EKFM-1-Z | LW Y1SG-AEBE-GKJM-1-Z | LW Y1SG-BEBF-EKJM-1-Z |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED COOL WHITE DIFFUSED SMD R/A | LED COOL WHITE DIFFUSED SMD R/A | LED COOL WHITE DIFFUSED SMD R/A | LED MICRO SIDELED 8200K WHT SMD |
| Series | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
