M1.5KE160A

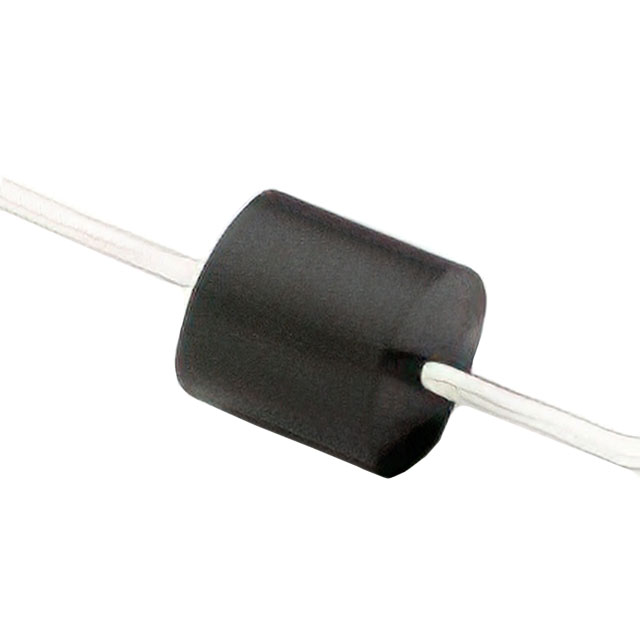

lmages are for reference only.M1.5KE160A
TVS DIODE UP 136VRWM 219VC
DatasheetDO-201AA, DO-27, Axial
89,352 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
219V Clamp 6.9A Ipp Tvs Diode Through Hole DO-201
M1.5KE160A
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | MDE Semiconductor Inc |
| Series | M1.5KE |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 136V |
| Voltage - Breakdown (Min) | 152V |
| Voltage - Clamping (Max) @ Ipp | 219V |
| Current - Peak Pulse (10/1000µs) | 6.9A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 |
| Base Product Number | 1.5KE |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | M1.5KE160A | M1.5KE160AE3 | M1.5KE160CA | M1.5KE160CAE3 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | TVS DIODE 136VWM 219VC CASE-1 | TVS DIODE 136VWM 219VC CASE-1 | TVS DIODE 136VWM 219VC CASE-1 | TVS DIODE 136VWM 219VC CASE-1 |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Bulk | Bulk | Bulk | Bulk |
