M15733/49-0006

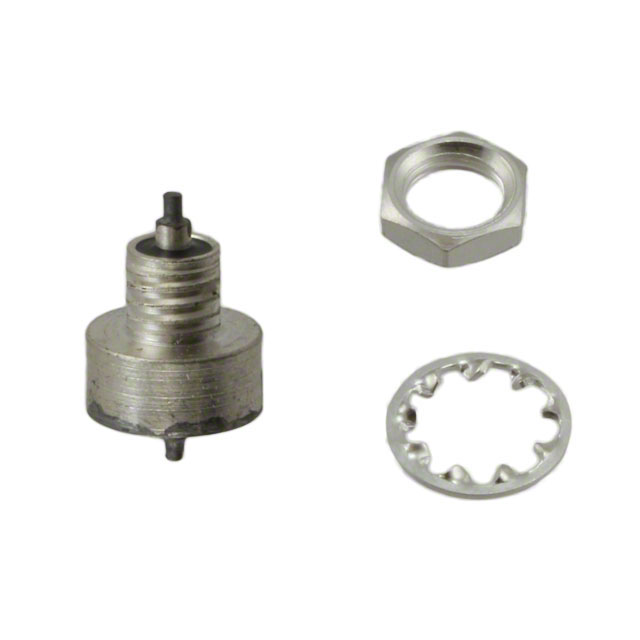

lmages are for reference only.M15733/49-0006
FILTER LC 1.2UF/2.4UF CHASSIS
DatasheetAxial, Bushing - 2 Solder Eyelets
27,828 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LC EMI Filter 2nd Order Low Pass 1 Channel C = 1.2µF, 2.4µF 15 A Axial, Bushing - 2 Solder Eyelets
M15733/49-0006
| Category | Filters - EMI-RFI Filters LC-RC Networks - |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components |
| Series | - |
| Packaging | Tray |
| RoHS Status | RoHS non-compliant |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | LC |
| Center / Cutoff Frequency | - |
| Attenuation Value | 70dB @ 1GHz ~ 10GHz |
| Resistance - Channel (Ohms) | - |
| Current | 15 A |
| Values | C = 1.2µF, 2.4µF |
| ESD Protection | No |
| Operating Temperature | -55°C ~ 125°C |
| Applications | - |
| Voltage - Rated | 50V |
| Mounting Type | Chassis Mount |
| Package / Case | Axial, Bushing - 2 Solder Eyelets |
| Size / Dimension | 0.385" Dia x 0.357" L (9.78mm x 9.07mm) |
| Height | - |
| Number of Channels | 1 |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | M15733/49-0001 | M15733/49-0001 | M15733/49-0006 | M15733/43-0001 |
| Manufacturer | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components | Tusonix a Subsidiary of CTS Electronic Components |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | FILTER LC 0.68UF CHASSIS | FILTER LC 0.68UF CHASSIS | FILTER LC 1.2UF/2.4UF CHASSIS | FILTER LC(PI) 1500PF CHASSIS |
| Series | - | - | - | - |
| Packaging | Tray | Tray | Tray | Bulk |
