M15KP260CA
lmages are for reference only.M15KP260CA
TVS DIODE 260VWM 419VC DO204AR
DatasheetDO-204AR, Axial
38,814 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
419V Clamp 36A Ipp Tvs Diode Through Hole DO-204AR
M15KP260CA
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 260V |
| Voltage - Breakdown (Min) | 289V |
| Voltage - Clamping (Max) @ Ipp | 419V |
| Current - Peak Pulse (10/1000µs) | 36A |
| Power - Peak Pulse | 15000W (15kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-204AR, Axial |
| Supplier Device Package | DO-204AR |
| Base Product Number | 15KP260 |
| Unidirectional Channels | - |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
| Product Attribute |  |
 |
|
 |

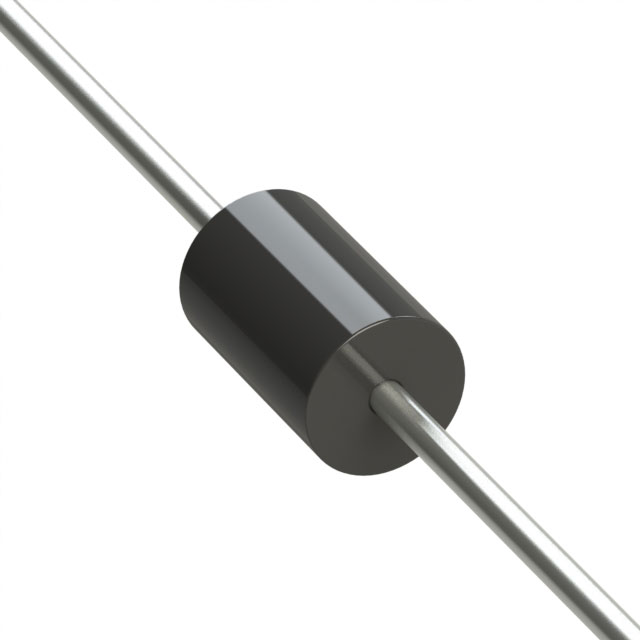

| Part Number | M15KP260CA/TR | M15KP260CAE3 | M15KP260CAE3/TR | M15KP260A |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | MDE Semiconductor Inc |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ||
| Description | TVS 260V 5% 15000W BI | TVS DIODE 260VWM 419VC DO204AR | TVS 260V 5% 15000W BI | TVS DIODE UP 260VRWM 416.7VC |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | MDE Semiconductor Inc |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Bulk |
