M29F800FB5AN6F2
lmages are for reference only.M29F800FB5AN6F2
IC FLASH 8MBIT PARALLEL 48TSOP
Datasheet48-TFSOP (0.724", 18.40mm Width)
16,123 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
FLASH - NOR Memory IC 8Mbit Parallel 55 ns 48-TSOP I
M29F800FB5AN6F2
| Category | Integrated Circuits (ICs) - Memory - Memory |
| Manufacturer | Alliance Memory, Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NOR |
| Memory Size | 8Mbit |
| Memory Organization | 1M x 8, 512K x 16 |
| Memory Interface | Parallel |
| Clock Frequency | - |
| Write Cycle Time - Word, Page | 55ns |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-TFSOP (0.724", 18.40mm Width) |
| Supplier Device Package | 48-TSOP I |
| Base Product Number | M29F800 |
| Access Time | 55 ns |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
 |
 |
 |

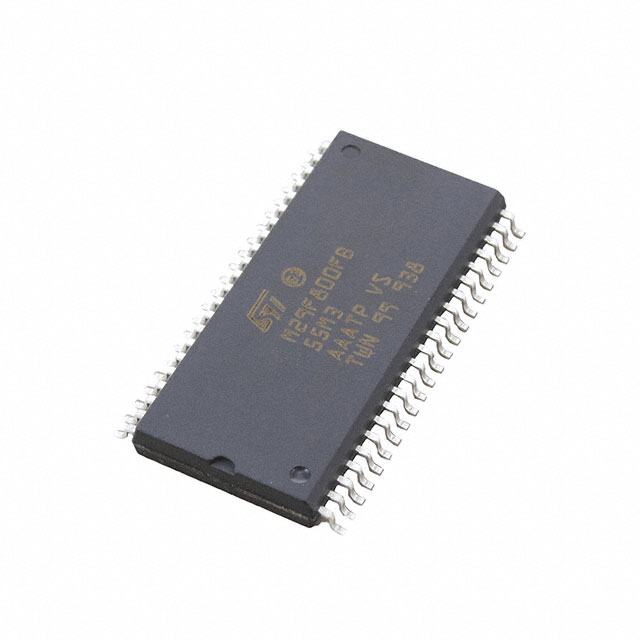

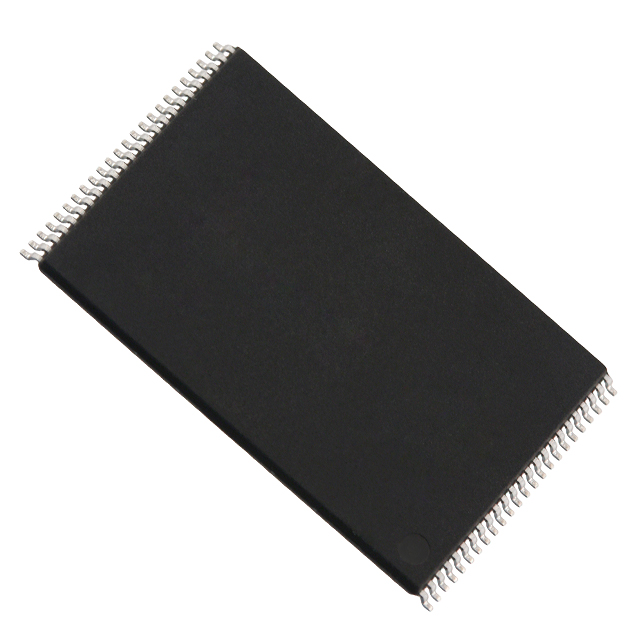

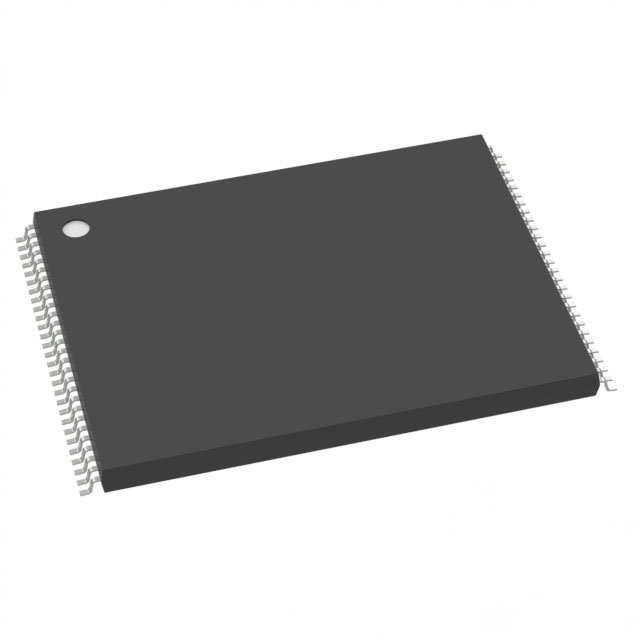

| Part Number | M29F800FB5AN6E2 | M29F800FB5AN6F2 TR | M29F800FB55M3E2 | M29F800FB55M3F2 |
| Manufacturer | Alliance Memory, Inc. | Micron Technology Inc. | Micron Technology Inc. | Alliance Memory, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC FLASH 8MBIT PARALLEL 48TSOP I | IC FLASH 8MBIT PARALLEL 48TSOP I | IC FLASH 8MBIT PARALLEL 44SO | IC FLASH 8MBIT PARALLEL 44SO |
| Series | Alliance Memory, Inc. | Micron Technology Inc. | Micron Technology Inc. | Alliance Memory, Inc. |
| Packaging | Tray | Tape & Reel (TR) | Tray | Tape & Reel (TR) |
