M323M-00000P-017BG
lmages are for reference only.M323M-00000P-017BG
SENSOR 246.56PSIG 7/16" 4.5V
DatasheetCylinder, Threaded
47,035 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 246.56PSI (1700kPa) Vented Gauge Female - 7/16" (11.11mm) UNF 0.5 V ~ 4.5 V Cylinder, Threaded
M323M-00000P-017BG
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | TE Connectivity Measurement Specialties |
| Series | M3200 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Applications | - |
| Pressure Type | Vented Gauge |
| Operating Pressure | 246.56PSI (1700kPa) |
| Output Type | Analog Voltage |
| Output | 0.5 V ~ 4.5 V |
| Accuracy | ±0.25% |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Female - 7/16" (11.11mm) UNF |
| Port Style | Threaded |
| Features | Amplified Output, Temperature Compensated |
| Termination Style | Cable/Wire Leads |
| Maximum Pressure | 493PSI (3400kPa) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | - |
| Package / Case | Cylinder, Threaded |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

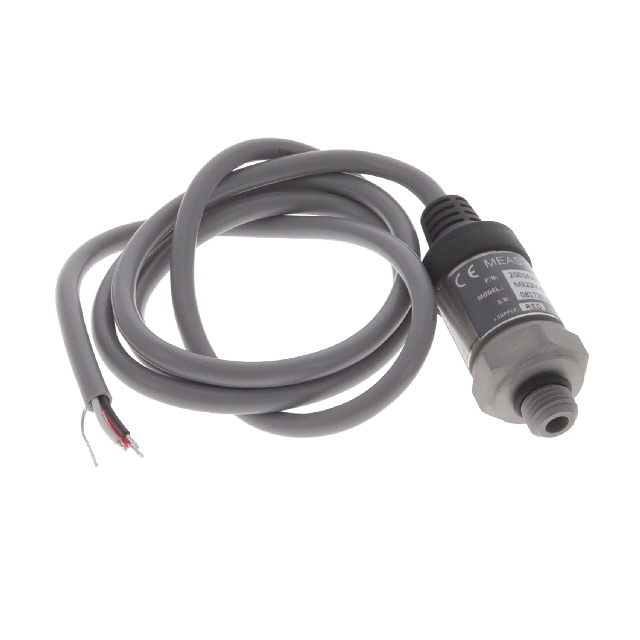

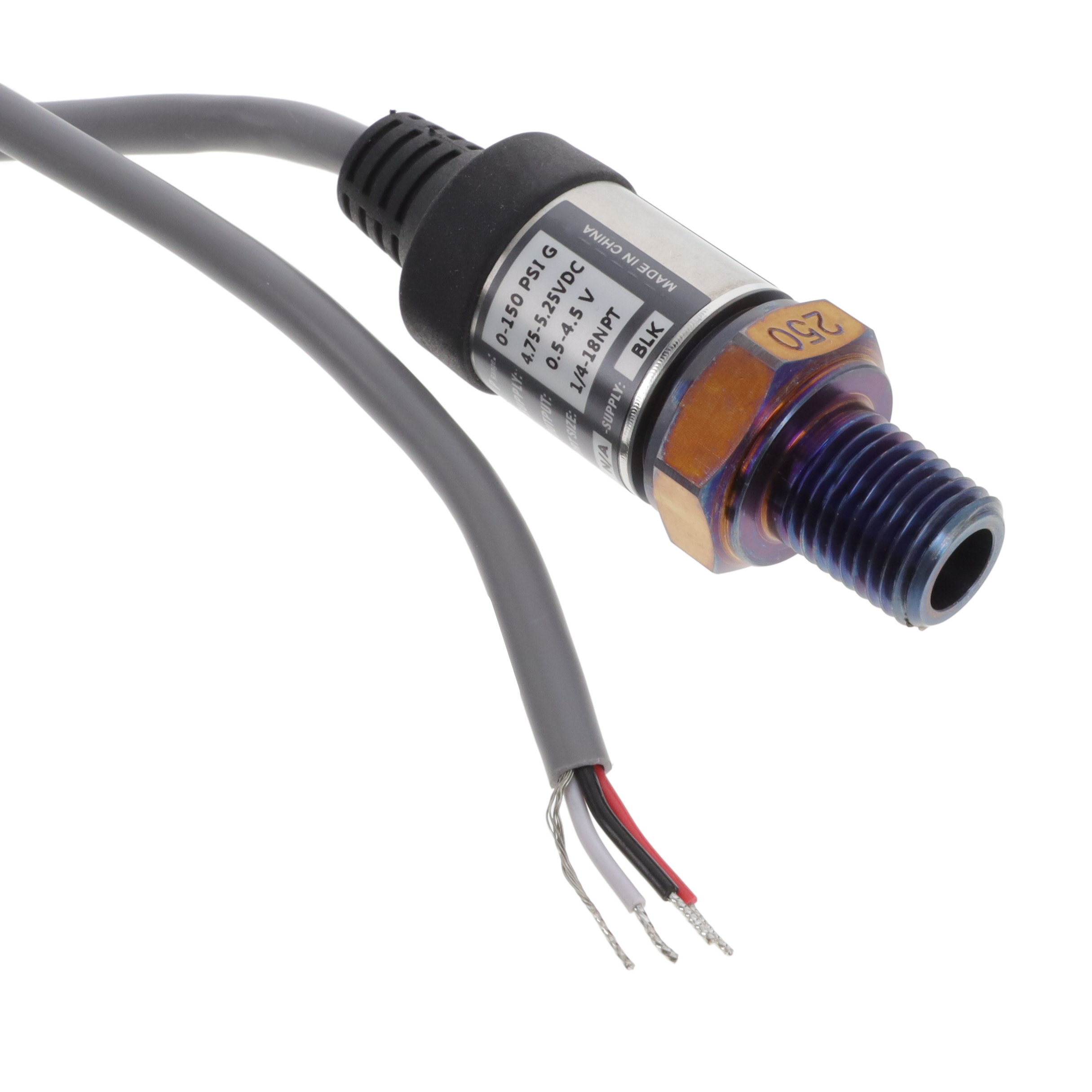

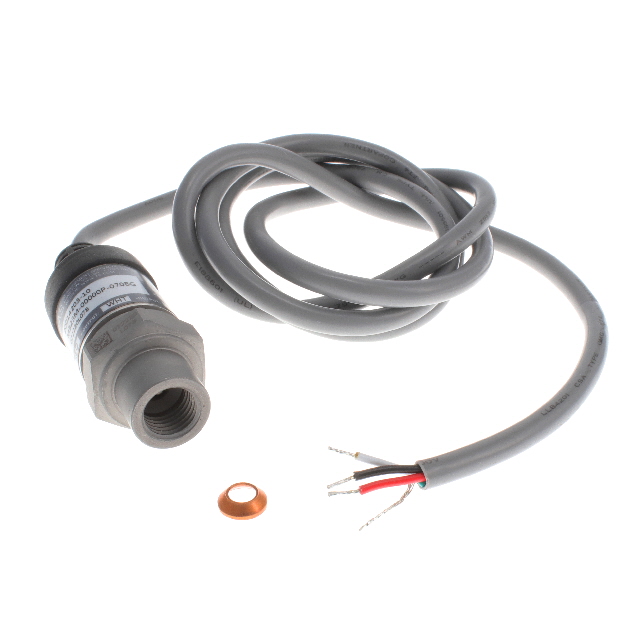

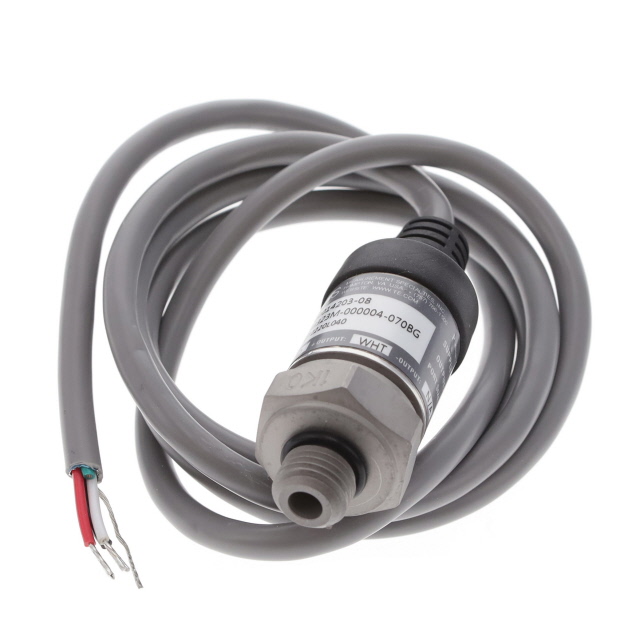

| Part Number | M323M-00000P-070BG | M323M-000004-017BG | M323M-000004-070BG | M323M-000005-150PG |
| Manufacturer | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR 1015.26PSIG 7/16" 4.5V | SENSOR 246.56PSIG 7/16" 4.5V | SENSOR 1015.26PSIG 7/16" 4.5V | PRESSURE TRANSDUCER |
| Series | M3200 | M3200 | M3200 | - |
| Packaging | Box | Box | Box | Box |
