M57962L-71R-02

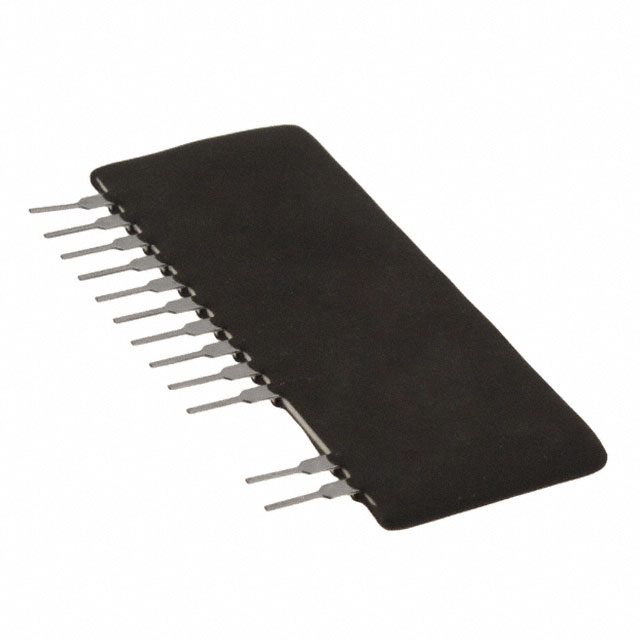

lmages are for reference only.M57962L-71R-02
IC GATE DRVR LOW-SIDE MODULE
Datasheet14-SIP Module, 12 Leads
10,590 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Low-Side Gate Driver IC Non-Inverting Module
M57962L-71R-02
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | Powerex Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT |
| Voltage - Supply | 14V ~ 15V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 5A, 5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 600ns, 400ns |
| Operating Temperature | -20°C ~ 60°C |
| Mounting Type | Through Hole |
| Package / Case | 14-SIP Module, 12 Leads |
| Supplier Device Package | Module |
| Base Product Number | M57962 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | M57959L | M57962CL-01 | LM5106SD/NOPB | MAX4420ESA |
| Manufacturer | Powerex Inc. | Powerex Inc. | Texas Instruments | Analog Devices Inc./Maxim Integrated |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | IC GATE DRVR LOW-SIDE MODULE | IC GATE DRVR LOW-SIDE MODULE | IC GATE DRVR HALF-BRIDGE 10WSON | IC GATE DRVR LOW-SIDE 8SOIC |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
