MA15KP22AE3

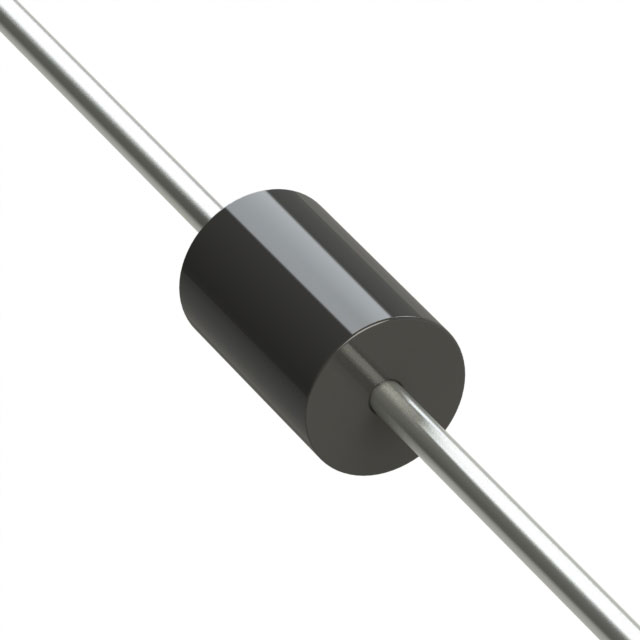

lmages are for reference only.MA15KP22AE3
TVS DIODE 22VWM 37.1VC DO204AR
DatasheetDO-204AR, Axial
71,753 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
37.1V Clamp 404A Ipp Tvs Diode Through Hole DO-204AR
MA15KP22AE3
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 22V |
| Voltage - Breakdown (Min) | 24.4V |
| Voltage - Clamping (Max) @ Ipp | 37.1V |
| Current - Peak Pulse (10/1000µs) | 404A |
| Power - Peak Pulse | 15000W (15kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-204AR, Axial |
| Supplier Device Package | DO-204AR |
| Base Product Number | 15KP22 |
| Unidirectional Channels | 1 |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
| Product Attribute |  |
 |
 |
 |
| Part Number | MA15KP220A | MA15KP220AE3 | MA15KP220CA | MA15KP220CAE3 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | TVS DIODE 220VWM 356VC DO204AR | TVS DIODE 220VWM 356VC DO204AR | TVS DIODE 220VWM 356VC DO204AR | TVS DIODE 220VWM 356VC DO204AR |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Bulk | Bulk | Bulk | Bulk |
