MAAM-011290-TR0500
lmages are for reference only.MAAM-011290-TR0500
IC RF AMP VSAT 5GHZ-20GHZ 12AQFN
Datasheet12-LFQFN Exposed Pad
57,128 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Amplifier IC VSAT 5GHz ~ 20GHz 12-AQFN (3x3)
MAAM-011290-TR0500
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | MACOM Technology Solutions |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Frequency | 5GHz ~ 20GHz |
| P1dB | 20dBm |
| Gain | 18dB |
| Noise Figure | 5dB |
| RF Type | VSAT |
| Voltage - Supply | 5V |
| Current - Supply | 110mA |
| Test Frequency | 20GHz |
| Mounting Type | Surface Mount |
| Package / Case | 12-LFQFN Exposed Pad |
| Supplier Device Package | 12-AQFN (3x3) |
| Base Product Number | MAAM-011290 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
|

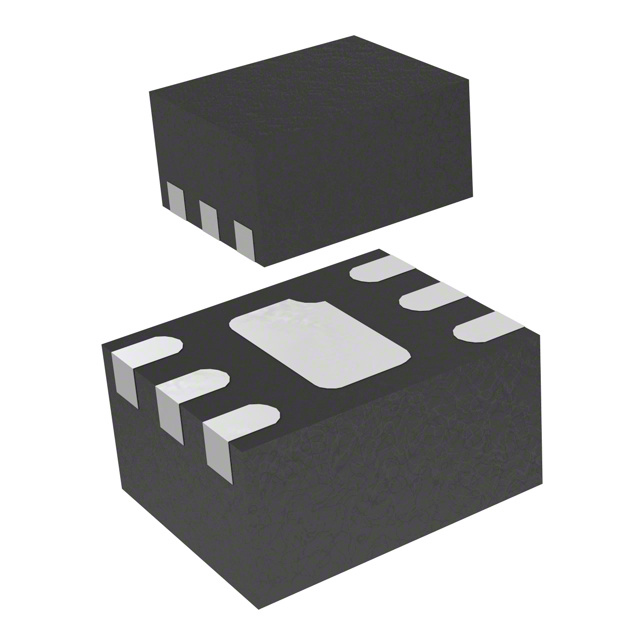

| Part Number | MAAM-011290-DIE | MAAM-011100-TR1000 | MAAM-011101-TR1000 | MAAM-011109-DIE |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | AMPLIFIER, DIE, 5-20 GHZ,20DB GA | IC RF AMP GPS 400MHZ-20GHZ 6TDFN | IC RF AMP GPS 4GHZ-20GHZ 6TDFN | AMPLIFIER,ULTRA WIDE-BAND DC-40 |
| Series | - | - | - | - |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
