MABA-010181-CF9A40

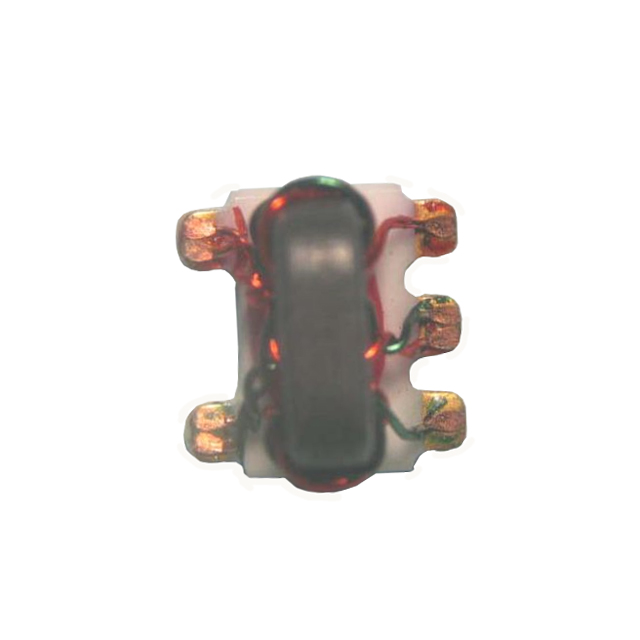

lmages are for reference only.MABA-010181-CF9A40
TRANSFORMER, FLUX COUPLED, 1:9
Datasheet6-SMD (5 Leads), Flat Lead
23,361 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Balun 5MHz ~ 90MHz 1:9 6-SMD (5 Leads), Flat Lead
MABA-010181-CF9A40
| Category | RF and Wireless - Balun - |
| Manufacturer | MACOM Technology Solutions |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Frequency Range | 5MHz ~ 90MHz |
| Impedance - Unbalanced/Balanced | 1:9 |
| Phase Difference | 0.2° |
| Insertion Loss (Max) | 1.8dB |
| Return Loss (Min) | 10dB |
| Package / Case | 6-SMD (5 Leads), Flat Lead |
| Mounting Type | Surface Mount |
| Base Product Number | MABA-010181 |
| Product Attribute |  |
 |
 |
 |

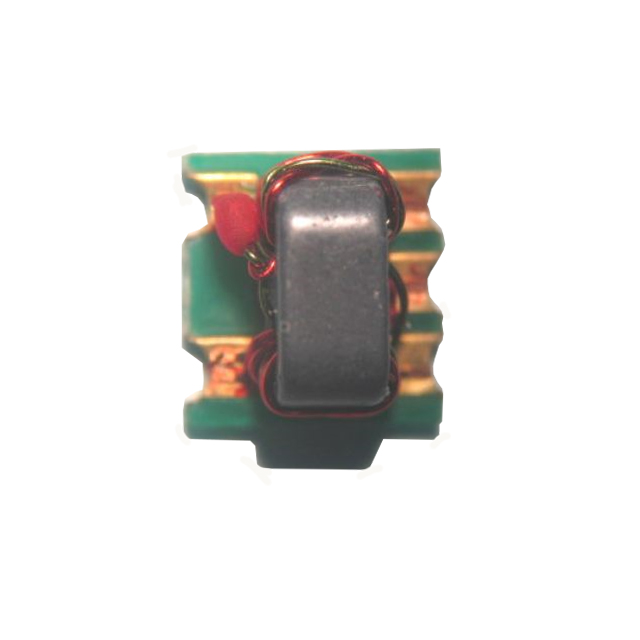

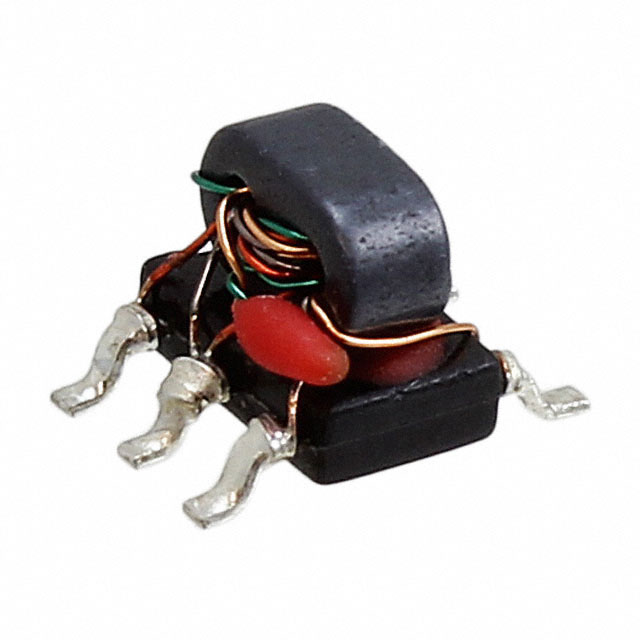

| Part Number | MABA-010125-TC1113 | MABA-010129-CT4A40 | MABA-010245-CT1160 | MABA-010247-2R1250 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

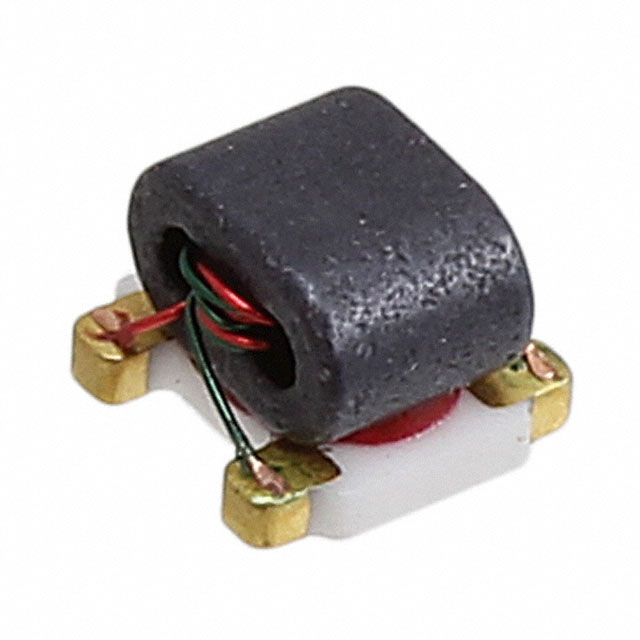

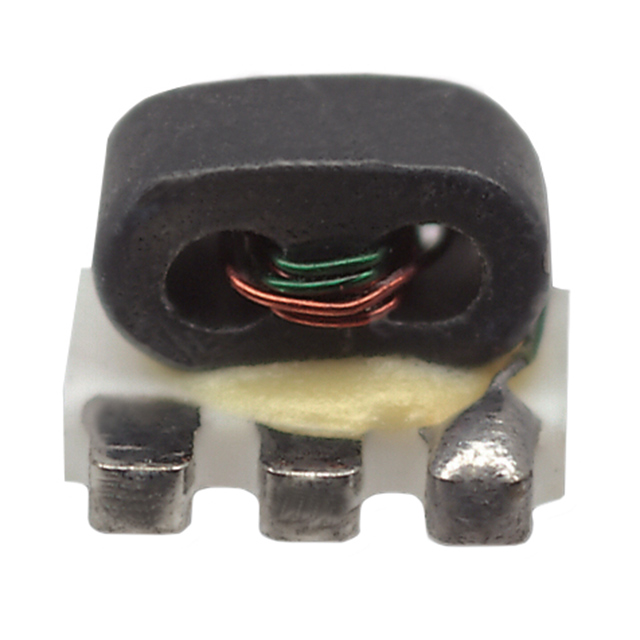

| Description | E-SERIES TRANSFORMER 4.5-3000MHZ | BALUN 5MHZ-1.2GHZ 50/75 6SMD GW | BALUN 50MHZ-1GHZ 1:1 6SMD FLAT | E-SERIES BALUN 1:2 1-1600MHZ |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
