MABACT0040
lmages are for reference only.MABACT0040
TRANSFORMER 1:1 TXLINE BALUN ON
Datasheet6-SMD (5 Leads), Flat Lead
95,399 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Balun 5MHz ~ 1.218GHz 1:1 6-SMD (5 Leads), Flat Lead
MABACT0040
| Category | RF and Wireless - Balun - |
| Manufacturer | MACOM Technology Solutions |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | 5MHz ~ 1.218GHz |
| Impedance - Unbalanced/Balanced | 1:1 |
| Phase Difference | 2.5° |
| Insertion Loss (Max) | 1.6dB |
| Return Loss (Min) | 16dB |
| Package / Case | 6-SMD (5 Leads), Flat Lead |
| Mounting Type | Surface Mount |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

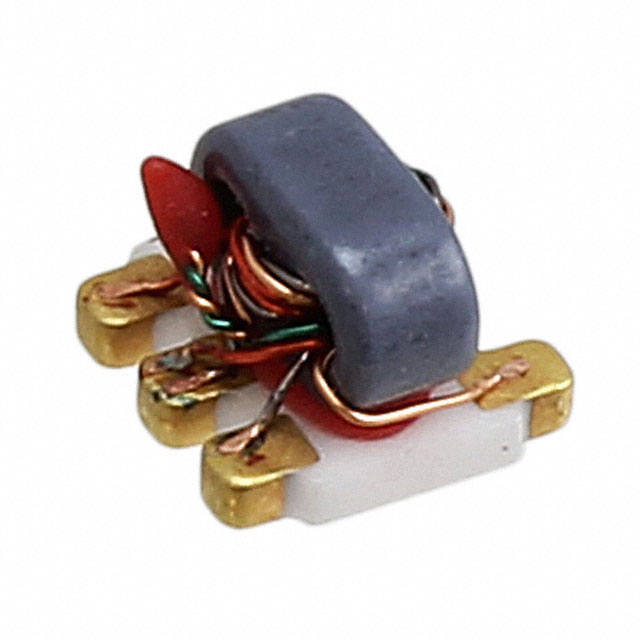

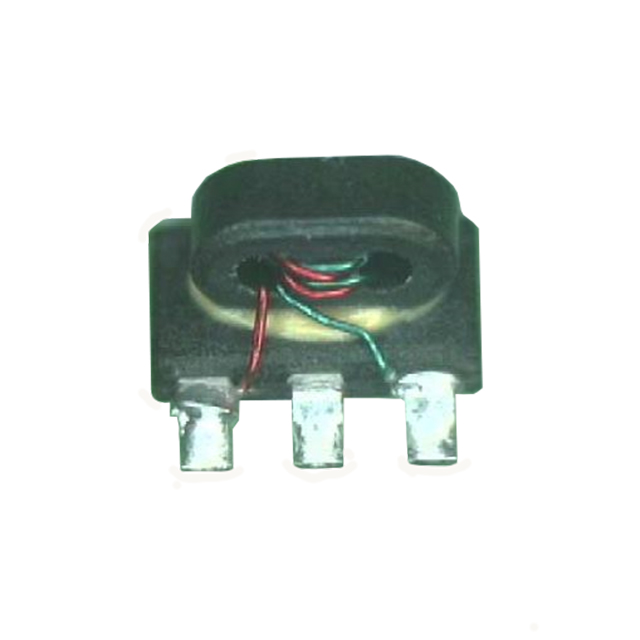

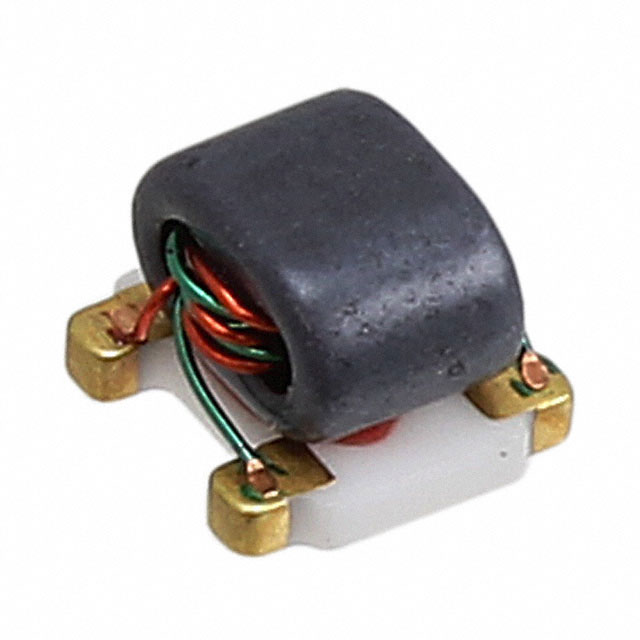

| Part Number | MABACT0039 | MABACT0059 | MABACT0060 | MABACT0062 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TRANSFORMER 1:1 TXLINE (BAISED O | BALUN 4.5MHZ-3GHZ 1:1 6SMD FLAT | 1:1 TRANSFORMER WITH TERTIARY WI | BALUN 3MHZ-200MHZ 1:1 6SMD FLAT |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT)-->Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
