MADL-011008-14120T

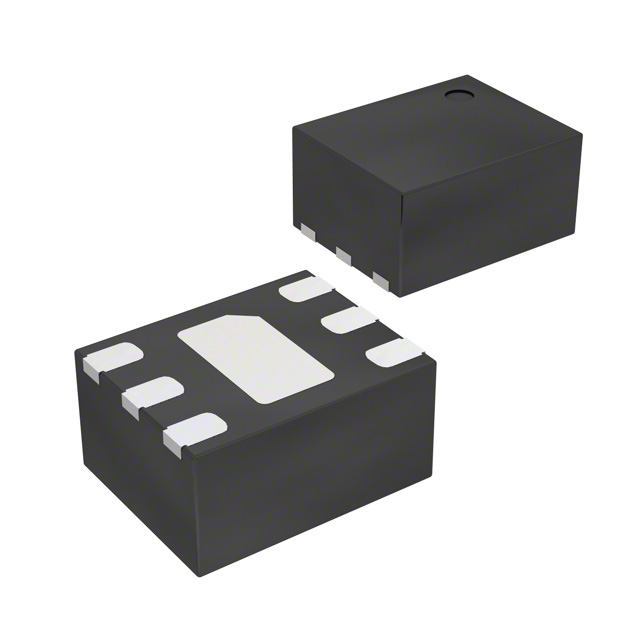

lmages are for reference only.MADL-011008-14120T
RF DIODE PIN 6DFN
Datasheet6-VFDFN Exposed Pad
22,897 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Diode PIN - Single 6-DFN (1.6x1.2)
MADL-011008-14120T
| Category | Discrete Semiconductor Products - Diodes - RF Diodes |
| Manufacturer | MACOM Technology Solutions |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | MADL-011008 |
| Diode Type | PIN - Single |
| Voltage - Peak Reverse (Max) | - |
| Current - Max | - |
| Capacitance @ Vr, F | - |
| Resistance @ If, F | - |
| Power Dissipation (Max) | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 6-VFDFN Exposed Pad |
| Supplier Device Package | 6-DFN (1.6x1.2) |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

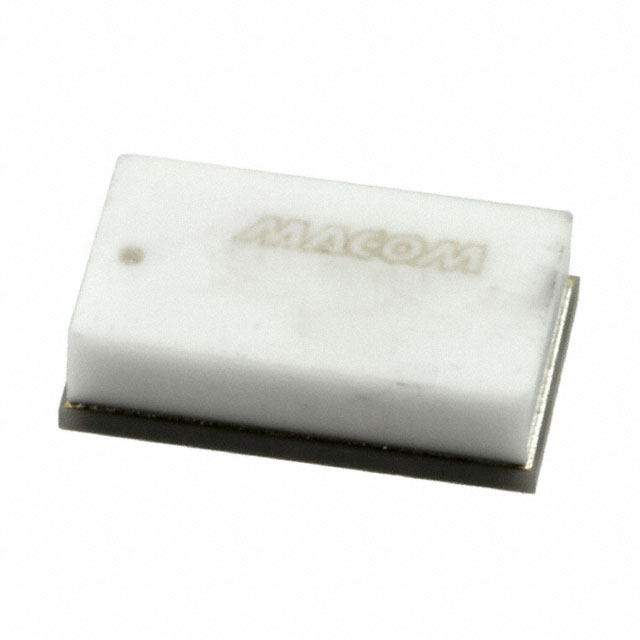

| Part Number | MADL-011011-01340W | MADL-011012-001 | MADL-011014-001000 | MADL-011015-001 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | DIODE,LIMITER,134 | RF DIODE 360W PWR LIMITER SMD | LIMITER HIGH POWER,1.0-2.0GHZ,HE | LIMITER HIGH POWER 2.0 TO 4.0 GH |
| Series | MADL | - | - | - |
| Packaging | Bulk | Bulk | Tray | Bulk |
