MADP-000907-14020P
lmages are for reference only.MADP-000907-14020P
DIODE,SOLDERABLE ALGAAS FC PIN
DatasheetDie
15,124 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Diode PIN - Single 45V 100 mW Die
MADP-000907-14020P
| Category | Discrete Semiconductor Products - Diodes - RF Diodes |
| Manufacturer | MACOM Technology Solutions |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | Not applicable |
| Base Product Number | MADP-000907 |
| Diode Type | PIN - Single |
| Voltage - Peak Reverse (Max) | 45V |
| Current - Max | - |
| Capacitance @ Vr, F | 0.03pF @ 10V, 1MHz |
| Resistance @ If, F | 7Ohm @ 10mA, 1GHz |
| Power Dissipation (Max) | 100 mW |
| Operating Temperature | 175°C (TJ) |
| Package / Case | Die |
| Supplier Device Package | Die |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

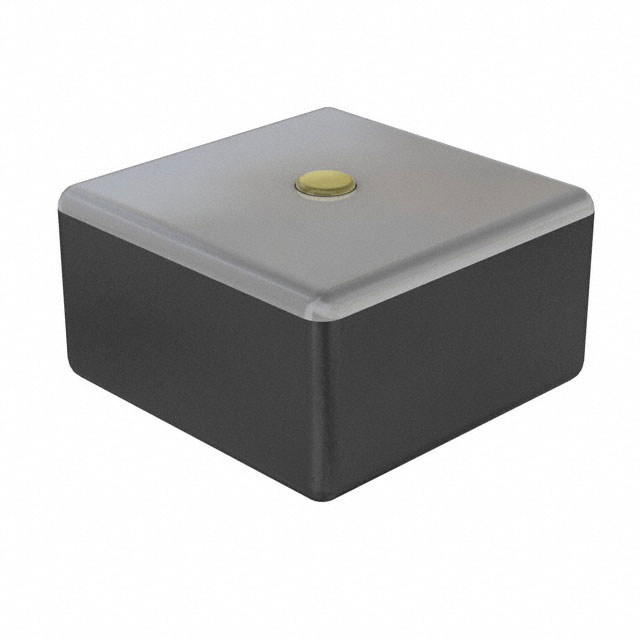

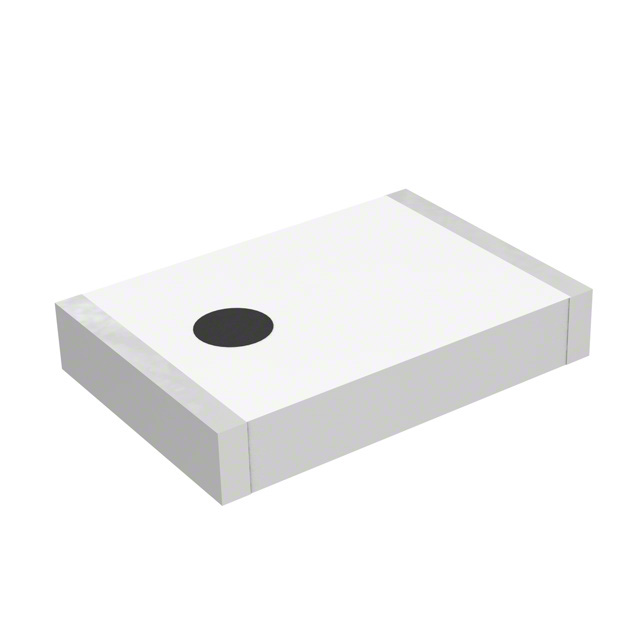

| Part Number | MADP-000907-14020W | MADP-000165-01340W | MADP-000234-10720T | MADP-000235-10720T |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | RF DIODE PIN 45V 100MW 2FLIPCHIP | RF DIODE PIN 200V DIE | PIN, MELF, TAPE & REEL | RF DIODE PIN 35V 7.5W |
| Series | - | - | - | - |
| Packaging | Tray | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
