Product CatalogPart Number
MAF300US48B-MU2F4
Manufacturer
P-DUKE TechnologyDescription
ISOLATED / 300W / VOUT: 48
Datasheet
DatasheetPackage
-
In Stock
11,559 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MAF300US48B-MU2F4
MAF300US48B-MU2F4
lmages are for reference only.Payment Methods
Delivery Services
Open Frame AC DC Converters 1 Output 48V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Quick Inquiry
MAF300US48B-MU2F4
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - AC DC Converters - |
| Manufacturer | P-DUKE Technology |
| Series | MAF300 (300W) |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 6.25 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 93% |
| Operating Temperature | -40°C ~ 80°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.60" L x 2.44" W x 1.56" H (116.8mm x 62.0mm x 39.6mm) |
| Approval Agency | CB, CE, cURus, FCC, UKCA |
| Minimum Load Required | No |
| Voltage - Output 5 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Power (Watts) | 180W (300W Forced Air) |
| Features | Adjustable Output, PFC, Universal Input |
| Standard Number | 60601-1; 62368-1 |
| Base Product Number | - |
| Current - Output 6 | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

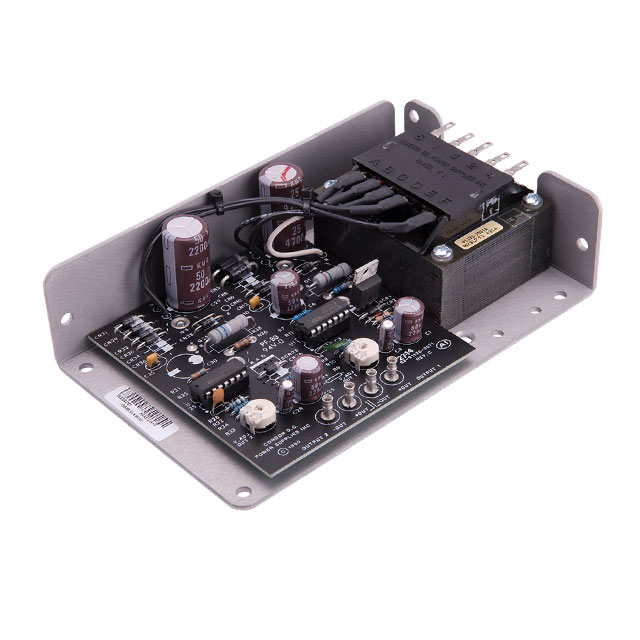

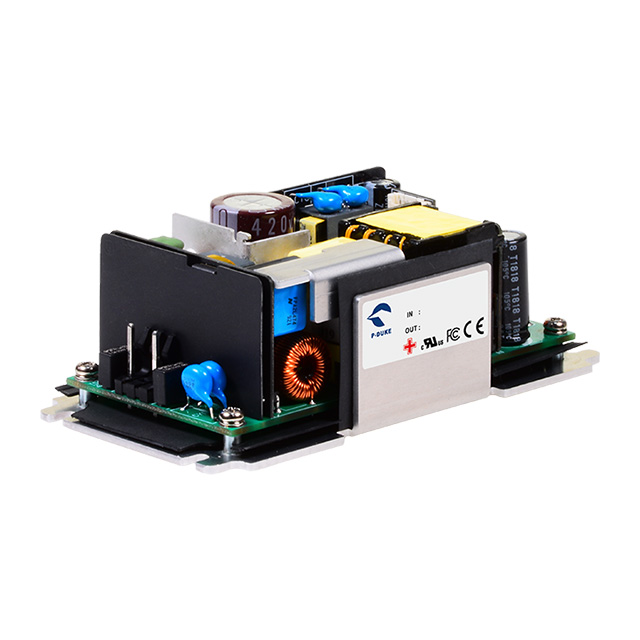

| Part Number | MAF300US12B-MU2F4 | MAF300US24B-MU2F4 | MAA15-0.8-A | MAA512-A |
| Manufacturer | P-DUKE Technology | P-DUKE Technology | SL POWER / Advanced Energy | SL POWER / Advanced Energy |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | ISOLATED / 300W / VOUT: 12 | ISOLATED / 300W / VOUT: 24 | AC/DC CONVERTER +/-15V 24W | AC/DC CONVERTER 5V 12V 16W |
| Series | MAF300 (300W) | MAF300 (300W) | Linear AA | Linear AA |
| Packaging | Box | Box | Bulk | Bulk |
