MAL209614681E3

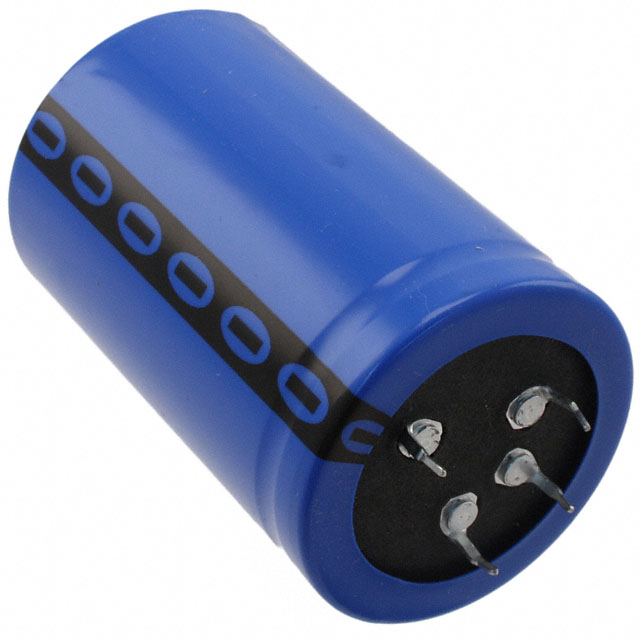

lmages are for reference only.MAL209614681E3
CAP ALUM 680UF 20% 420V SNAP TH
DatasheetRadial, Can - Snap-In - 4 Lead
32,875 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
680 µF 420 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 4 Lead 204mOhm @ 100Hz 5000 Hrs @ 85°C
MAL209614681E3
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | 096 PLL-4TSI |
| Packaging | Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | 204mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.1 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Lead Spacing | - |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.756" (70.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
| Base Product Number | - |
| Impedance | 85 mOhms |
| Product Attribute | |
|
 |
|
| Part Number | MAL209614102E3 | MAL209614821E3 | MAL209615102E3 | MAL209615122E3 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 1000UF 20% 420V SNAP TH | CAP ALUM 820UF 20% 420V SNAP TH | CAP ALUM 1000UF 20% 350V SNAP TH | CAP ALUM 1200UF 20% 350V SNAP TH |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) |
