MAL218497109E3

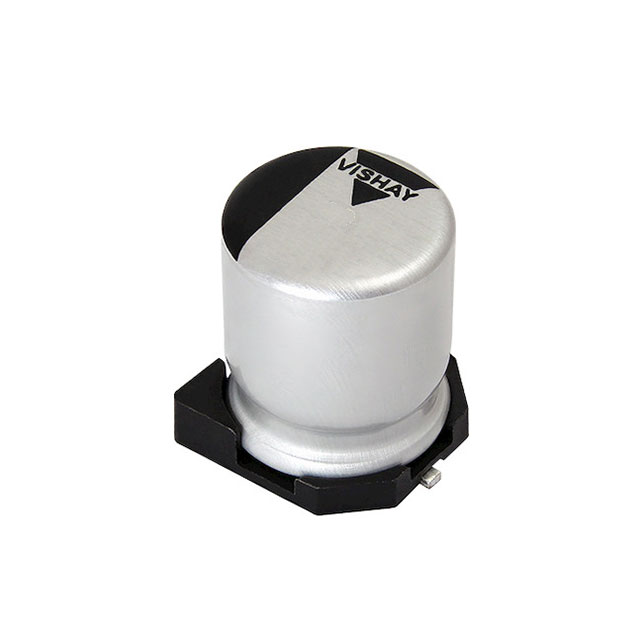

lmages are for reference only.MAL218497109E3
CAP ALUM POLY 100UF 20% 50V SMD
DatasheetRadial, Can - SMD
79,370 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 25mOhm 2000 Hrs @ 105°C
MAL218497109E3
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | 184 CPNS |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MAL218497101E3 | MAL218497102E3 | MAL218497103E3 | MAL218497104E3 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 8.2UF 20% 50V SMD | CAP ALUM POLY 10UF 20% 50V SMD | CAP ALUM POLY 12UF 20% 50V SMD | CAP ALUM POLY 15UF 20% 50V SMD |
| Series | 184 CPNS | 184 CPNS | 184 CPNS | 184 CPNS |
| Packaging | Box | Box | Box | Box |
