MAQ800GQE-AEC1-Z
lmages are for reference only.MAQ800GQE-AEC1-Z
AUTOMOTIVE-GRADE 8-BIT ANGLE ENC
Datasheet16-VFQFN Exposed Pad
49,259 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Angle External Magnet, Not Included Gull Wing
MAQ800GQE-AEC1-Z
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Monolithic Power Systems Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Angle |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | - |
| Linear Range | - |
| Output | SPI |
| Output Signal | Clockwise Increase |
| Actuator Type | External Magnet, Not Included |
| Linearity | - |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 3V ~ 3.6V |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

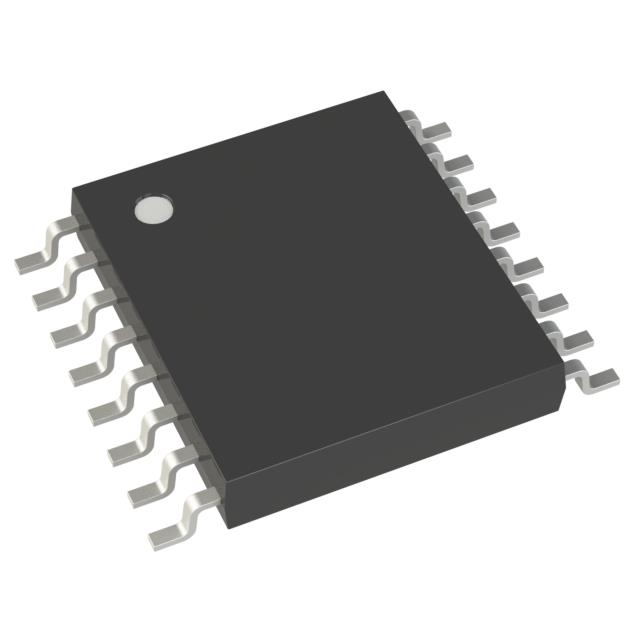

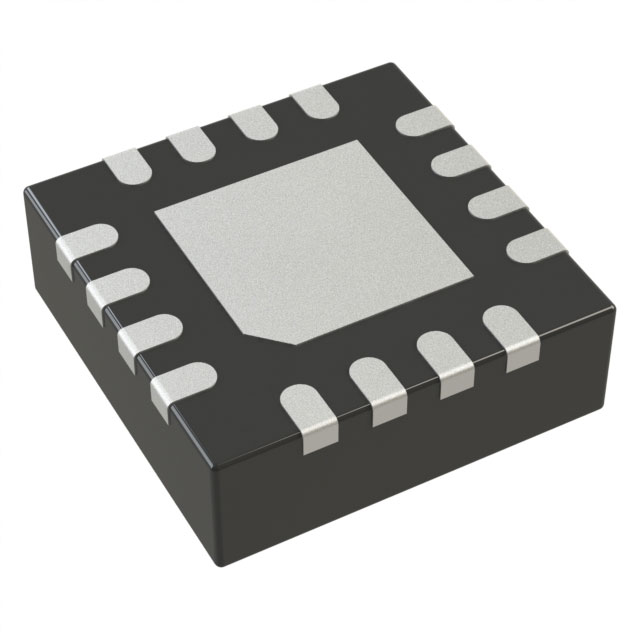

| Part Number | MAQ800GQE-AEC1-P | MLX90513GGO-CAA-100-SP | MLX90365LGO-ACE-000-SP | MLX90371GVS-BCC-151-RX |
| Manufacturer | Monolithic Power Systems Inc. | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | AUTOMOTIVE-GRADE 8-BIT ANGLE ENC | INDUCTIVE POSITION SENSOR ASSP W | SENSR RTRY/LINR ANLG/PWM 16TSSOP | SENSOR ROTRY/LNEAR ANLG/PWM 4DMP |
| Series | - | - | Triaxis® | Triaxis® |
| Packaging | Cut Tape (CT)-->Bulk | Bulk | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
