MART100KP54CA

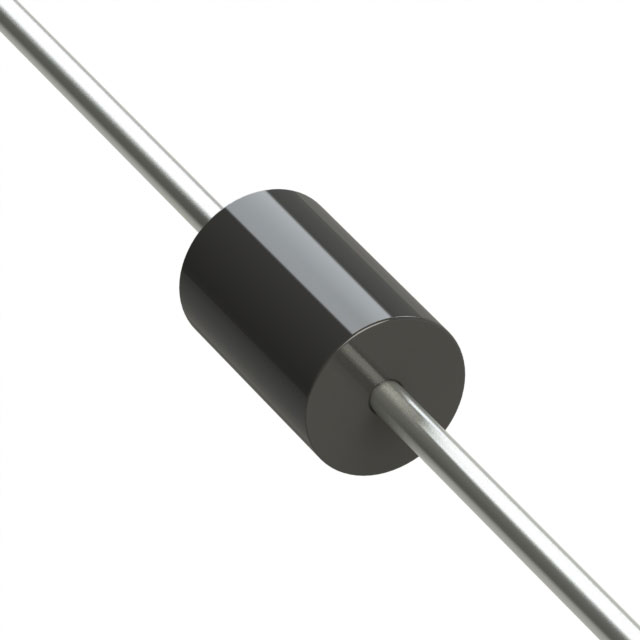

lmages are for reference only.MART100KP54CA
TVS DIODE 54VWM 106VC CASE 5A
DatasheetDO-204AR, Axial
85,079 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
106V Clamp Ipp Tvs Diode Through Hole Case 5A (DO-204AR)
MART100KP54CA
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 54V |
| Voltage - Breakdown (Min) | 60V |
| Voltage - Clamping (Max) @ Ipp | 106V |
| Current - Peak Pulse (10/1000µs) | - |
| Power - Peak Pulse | 100000W (100kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-204AR, Axial |
| Supplier Device Package | Case 5A (DO-204AR) |
| Base Product Number | MART100KP54 |
| Unidirectional Channels | - |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
| Product Attribute | |
 |
 |
 |
| Part Number | MART100KP54CA | MART100KP54CAE3 | MART100KP54CAE3/TR | MART100KP51A |
| Manufacturer | MDE Semiconductor Inc | Microchip Technology | Microchip Technology | MDE Semiconductor Inc |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | |
| Description | TVS DIODE BP 54VRWM 106.0VC | TVS DIODE 54VWM 106VC CASE 5A | TVS 54V 10% 100000W BI | TVS DIODE UP 51VRWM 101.0VC |
| Series | MDE Semiconductor Inc | Microchip Technology | Microchip Technology | MDE Semiconductor Inc |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Bulk |
