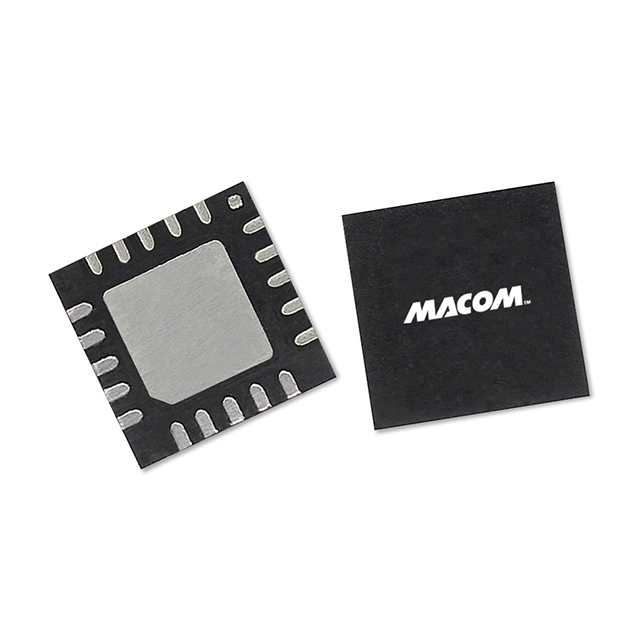

MASW-011120
lmages are for reference only.MASW-011120
IC RF SWITCH SPDT 6GHZ 20HQFN
Datasheet20-LQFN Exposed Pad
71,955 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Switch IC LTE SPDT 50Ohm 20-HQFN (5x5)
MASW-011120
| Category | RF and Wireless - RF Switches - |
| Manufacturer | MACOM Technology Solutions |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| RF Type | LTE |
| Topology | - |
| Circuit | SPDT |
| Frequency Range | 30MHz ~ 6GHz |
| Isolation | 13dB |
| Insertion Loss | 0.5dB |
| Test Frequency | 3.5GHz |
| P1dB | - |
| IIP3 | 68.5dBm |
| Features | - |
| Impedance | 50Ohm |
| Voltage - Supply | - |
| Operating Temperature | -40°C ~ 120°C |
| Package / Case | 20-LQFN Exposed Pad |
| Supplier Device Package | 20-HQFN (5x5) |
| Base Product Number | MASW-011120 |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
|
| Part Number | MASW-011120 | MASW-011120-TR1000 | MASW-011120-TR1000 | MASW-011127-TR1000 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | IC RF SWITCH SPDT 6GHZ 20HQFN | IC RF SWITCH SPDT 6GHZ 20HQFN | IC RF SWITCH SPDT 6GHZ 20HQFN | SWITCH,SP4T,2.3-5.0GHZ,4MM QFN,1 |
| Series | - | - | - | - |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
