MAX4547CSE

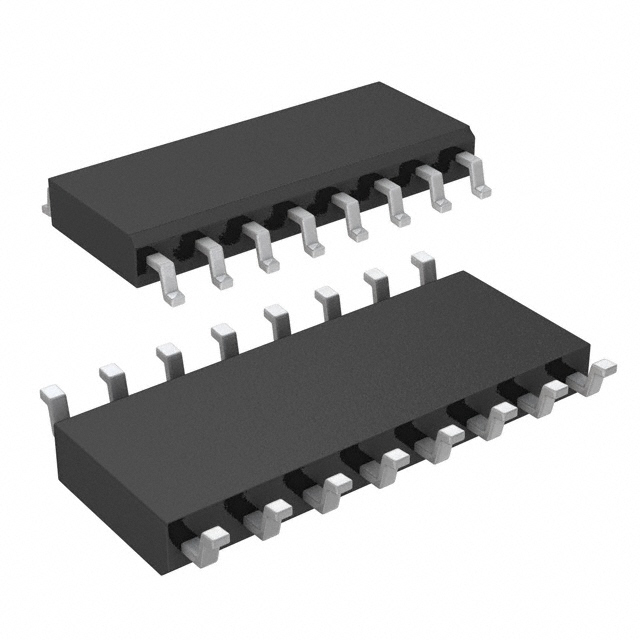

lmages are for reference only.MAX4547CSE
IC SW BIDIRECT RF VIDEO 16-SOIC
Datasheet16-SOIC (0.154", 3.90mm Width)
21,925 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Video Switch IC 2 Channel 16-SOIC
MAX4547CSE
| Category | Integrated Circuits (ICs) - Interface - Analog Switches Special Purpose |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Applications | Video |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Switch Circuit | SPDT |
| Number of Channels | 2 |
| On-State Resistance (Max) | 20Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 6V |
| -3db Bandwidth | 300MHz |
| Features | Bi-Directional, Break-Before-Make, T-Switch Configuration |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | MAX4547 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MAX4547CSE+ | MAX4547CEE | MAX4547CEE+ | MAX4547CEE+T |
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC VIDEO SWITCH DUAL SPDT 16SOIC | IC VIDEO SWITCH DUAL SPDT 16QSOP | IC VIDEO SWITCH DUAL SPDT 16QSOP | IC VIDEO SWITCH DUAL SPDT 16QSOP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR) |
