MAX5975AETE+T

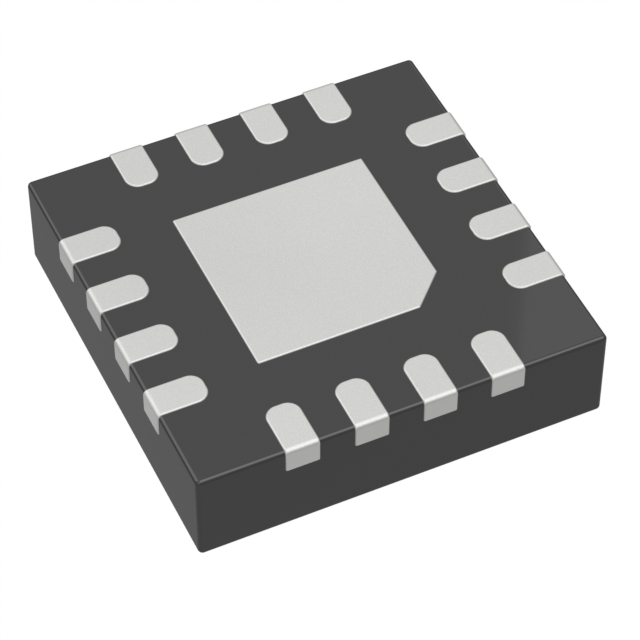

lmages are for reference only.MAX5975AETE+T
IC OFFLINE SW MULT TOP 16TQFN
Datasheet16-WFQFN Exposed Pad
39,501 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Converter Offline Flyback, Forward Topology 100kHz ~ 600kHz 16-TQFN (3x3)
MAX5975AETE+T
| Category | Integrated Circuits (ICs) - Power Management PMIC - AC DC Converters-Offline Switches |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Isolation | Either |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback, Forward |
| Voltage - Supply (Vcc/Vdd) | 20V ~ 26V |
| Duty Cycle | 82.5% |
| Frequency - Switching | 100kHz ~ 600kHz |
| Power (Watts) | - |
| Fault Protection | Over Temperature |
| Control Features | EN, Frequency Control, Soft Start, Sync |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-TQFN (3x3) |
| Mounting Type | Surface Mount |
| Base Product Number | MAX5975 |
| Voltage - Start Up | 20 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MAX5975BETE+ | MAX17498AATE+ | MAX5974CETE+T | MAX5974AETE+T |
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG CTRLR FLYBK ISO CM 16TQFN | IC OFFLINE SW MULT TOP 16TQFN | IC OFFLINE SWITCH FWD 16TQFN | IC OFFLINE SWITCH FWD 16TQFN |
| Series | - | - | - | - |
| Packaging | Strip | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
