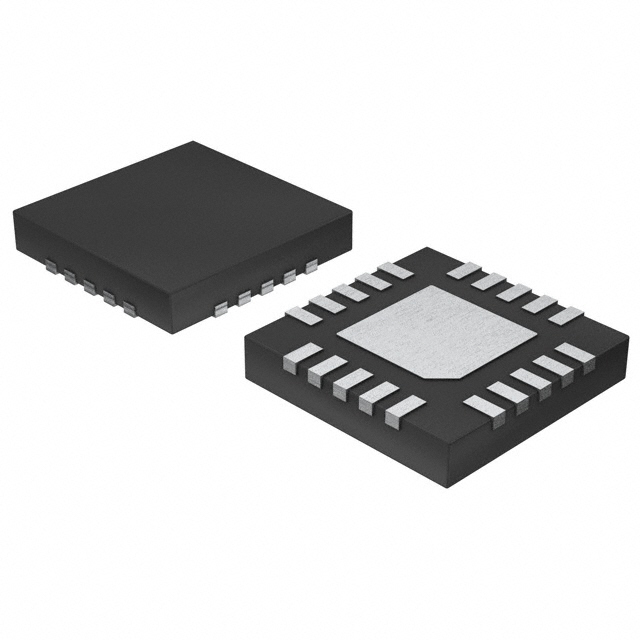

MAX77801ETP+
lmages are for reference only.MAX77801ETP+
IC REG BUCK BOOST PROG 2A 20TQFN
Datasheet20-WFQFN Exposed Pad
71,864 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck-Boost Switching Regulator IC Positive Programmable 2.6V 1 Output 2A 20-WFQFN Exposed Pad
MAX77801ETP+
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Output Type | Programmable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.3V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.6V |
| Voltage - Output (Max) | - |
| Current - Output | 2A |
| Frequency - Switching | 2.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-TQFN (4x4) |
| Base Product Number | MAX77801 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MAX77801ETP+T | MAX77801EWP+T | MAX77801HEWP+T | MAX77812AEWB+T |
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

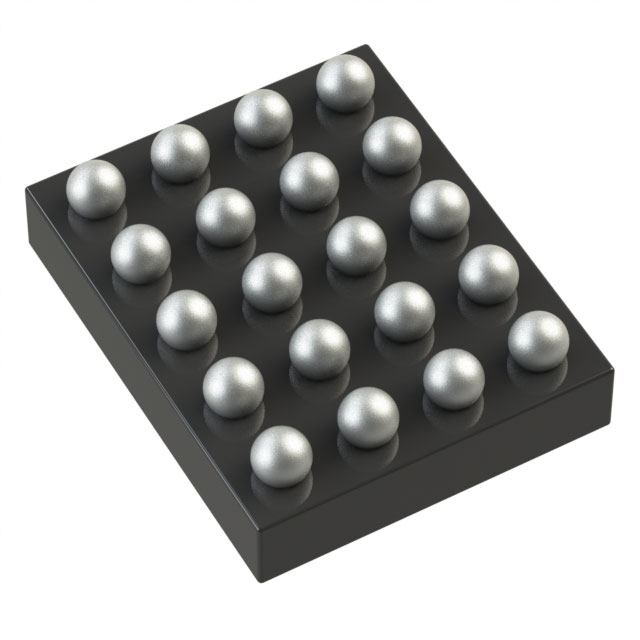

| Description | IC REG BUCK BOOST PROG 2A 20TQFN | IC REG BUCK BOOST PROG 2A 20WLP | IC REG BUCK BOOST PROG 2A 20WLP | IC REG BUCK ADJ 20A QUAD 64WLP |
| Series | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
