Product CatalogPart Number
MBR2080CTP
Manufacturer
SMC Diode SolutionsDescription
DIODE ARRAY SCHOTTKY 80V TO220AB
Datasheet
DatasheetPackage
TO-220-3
In Stock
10,619 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MBR2080CTP
MBR2080CTP
lmages are for reference only.Payment Methods
Delivery Services
Diode Array 1 Pair Common Cathode 80 V Through Hole TO-220-3
Quick Inquiry
MBR2080CTP
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | SMC Diode Solutions |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 80 V |
| Current - Average Rectified (Io) (per Diode) | - |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1 mA @ 80 V |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220AB |
| Base Product Number | MBR2080 |
| Reverse Recovery Time (trr) | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
|
 |
 |

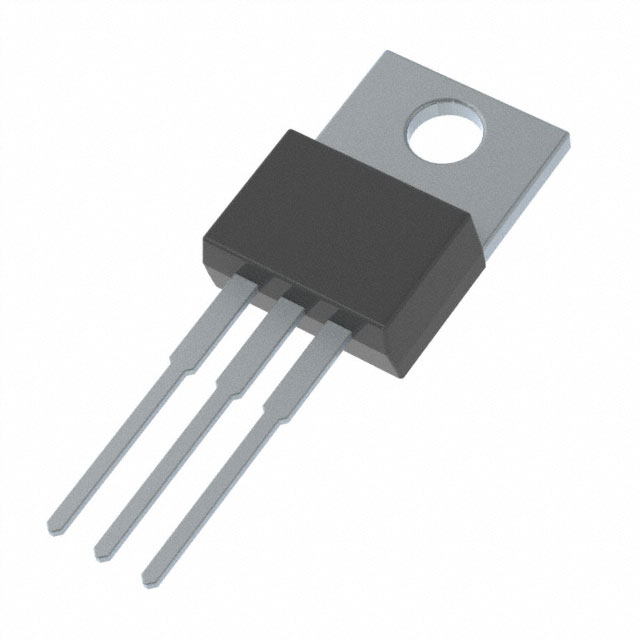

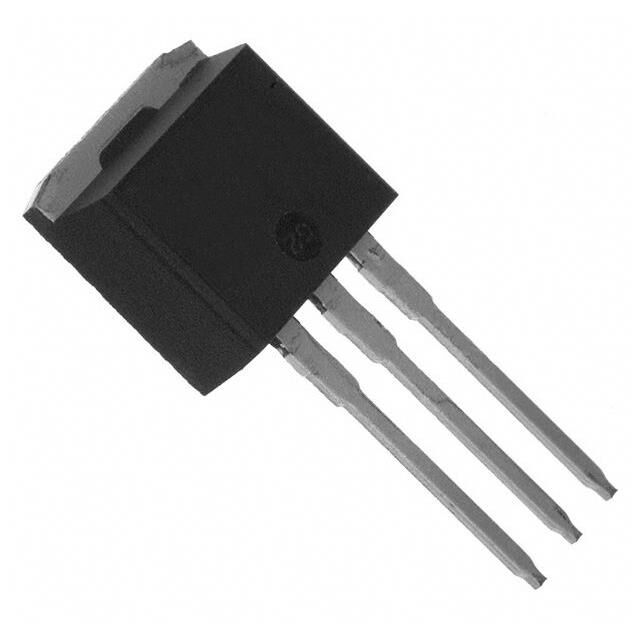

| Part Number | MBR2080CT | MBR2080CT | MBR2080CT-1 | MBR2080CT-BP |
| Manufacturer | SMC Diode Solutions | onsemi | Vishay General Semiconductor - Diodes Division | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | |
| Description | DIODE ARRAY SCHOTTKY 80V TO220AB | DIODE ARRAY SCHOT 80V 10A TO-220 | DIODE ARR SCHOTT 80V 10A TO2623 | DIODE ARR SCHOTT 80V 20A TO220AB |
| Series | - | SWITCHMODE™ | - | - |
| Packaging | Tube | Tube | Tube | Bulk |
Customers Also Interested in
Recommended Products
MBR200100CT
GeneSiC Semiconductor
MBR200100CTR
GeneSiC Semiconductor

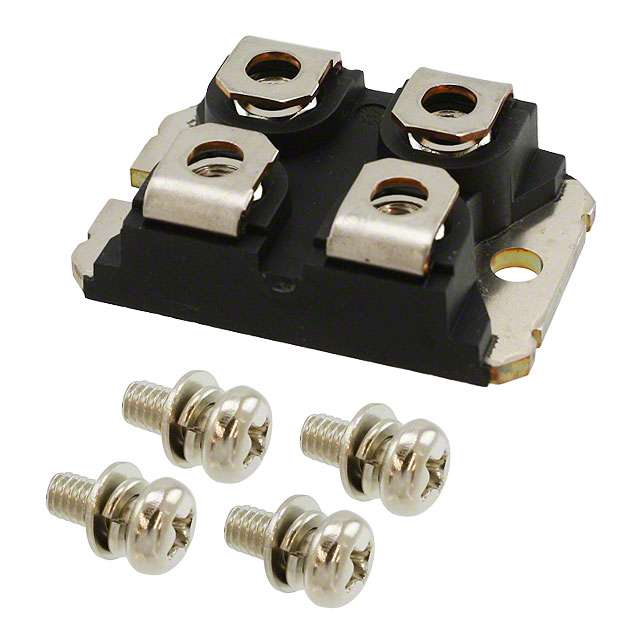

MBR200100CTS
GeneSiC Semiconductor
MBR200150CT
GeneSiC Semiconductor
MBR200150CTR
GeneSiC Semiconductor
MBR200200CT
GeneSiC Semiconductor
MBR200200CTR
GeneSiC Semiconductor
MBR20020CT
GeneSiC Semiconductor
MBR20020CTR
GeneSiC Semiconductor

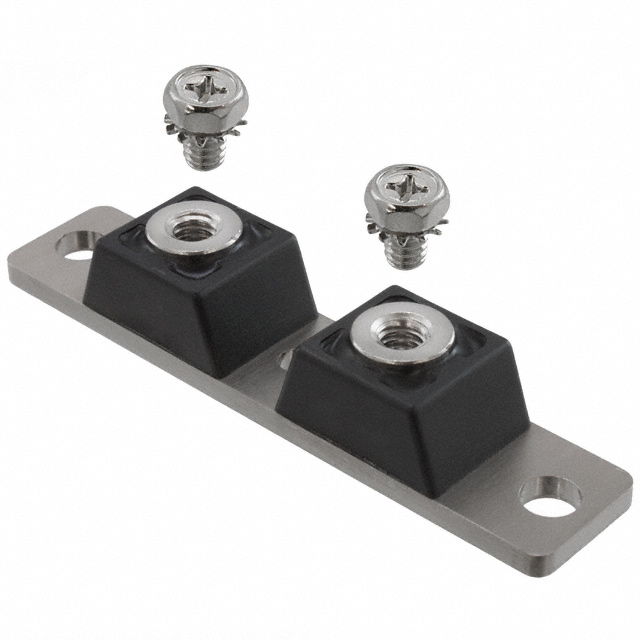

MBR20030CT
GeneSiC Semiconductor

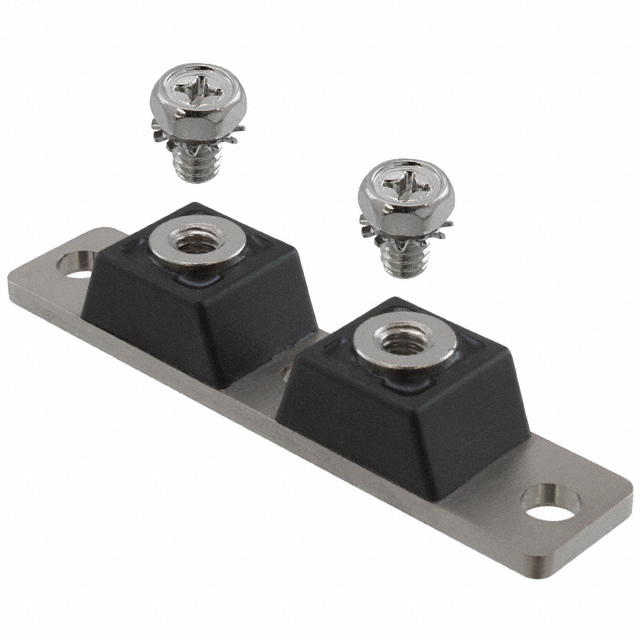

MBR20030CTR
