MBR7100H

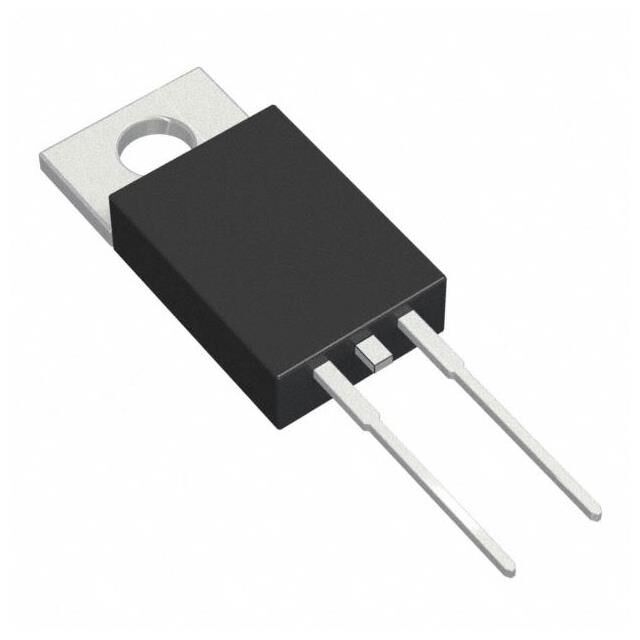

lmages are for reference only.MBR7100H
7.5A, 100V, PLANAR SCHOTTKY
DatasheetTO-220-2
44,213 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 100 V 7.5A Through Hole TO-220AC
MBR7100H
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 7.5A |
| Voltage - Forward (Vf) (Max) @ If | 920 mV @ 7.5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 100 µA @ 100 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220AC |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
|
| Part Number | MBR7100 | MBR7100 C0G | MBR7150 | MBR7150 C0G |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | 7.5A, 100V, PLANAR SCHOTTKY | DIODE SCHOTTKY 100V 7.5A TO220AC | 7.5A, 150V, PLANAR SCHOTTKY | DIODE SCHOTTKY 150V 7.5A TO220AC |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
