MBR8060R

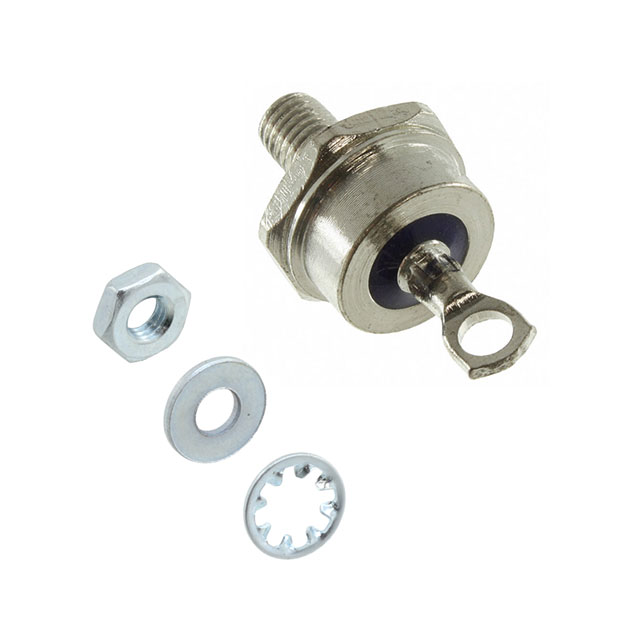

lmages are for reference only.MBR8060R
DIODE SCHOTTKY REV 60V 80A DO5
DatasheetDO-203AB, DO-5, Stud
23,289 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 60 V 80A Chassis, Stud Mount DO-5
MBR8060R
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | GeneSiC Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Technology | Schottky, Reverse Polarity |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Current - Average Rectified (Io) | 80A |
| Voltage - Forward (Vf) (Max) @ If | 750 mV @ 80 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 1 mA @ 60 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | DO-203AB, DO-5, Stud |
| Supplier Device Package | DO-5 |
| Operating Temperature - Junction | -55°C ~ 160°C |
| Base Product Number | MBR8060 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
|
|
| Part Number | MBR8060 | MBR80100 | MBR80100R | MBR80100WT |
| Manufacturer | GeneSiC Semiconductor | GeneSiC Semiconductor | GeneSiC Semiconductor | SMC Diode Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | DIODE SCHOTTKY 60V 80A DO5 | DIODE SCHOTTKY 100V 80A DO5 | DIODE SCHOTTKY REV 100V 80A DO5 | 100V, 80A, TO-247AD, DIODE SCHOT |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Tube |
