MC10XSD200FK

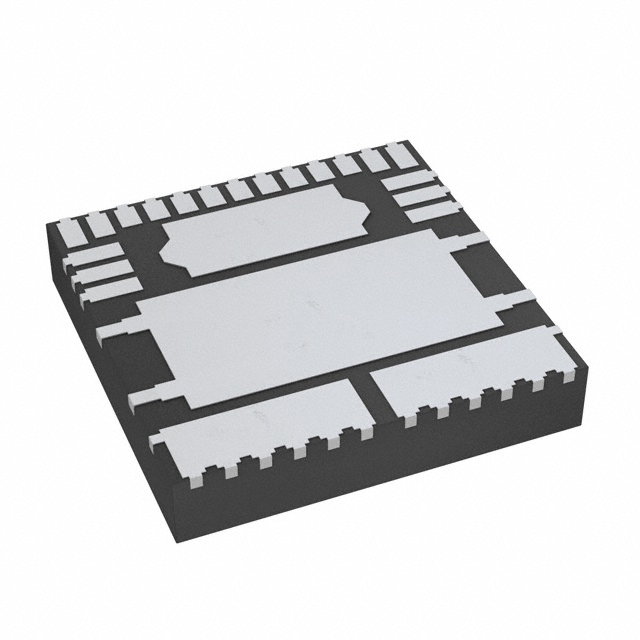

lmages are for reference only.MC10XSD200FK
HIGH-SIDE SWITCH, 36V, DUAL 10MO
Datasheet23-PowerQFN
45,923 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:1 N-Channel 6A 23-PQFN (12x12)
MC10XSD200FK
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | Freescale Semiconductor - NXP |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 8V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 6A |
| Rds On (Typ) | 10mOhm |
| Input Type | Non-Inverting |
| Features | Internal PWM, Slew Rate Controlled, Watchdog Timer |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 23-PQFN (12x12) |
| Package / Case | 23-PowerQFN |
| Base Product Number | MC10XSD200 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MC10XSD200FK | MC10XS3412CHFK | MC10XS3412CHFKR2 | MC10XS3412CPNA |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC PWR SWITCH N-CHAN 1:1 23PQFN | IC PWR SWITCH N-CHAN 1:1 24PQFN | IC PWR SWITCH N-CHAN 1:1 24PQFN | IC PWR SWITCH N-CHAN 1:1 24PQFN |
| Series | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Packaging | Tray | Tray | Tape & Reel (TR) | Tray |
