MC13211

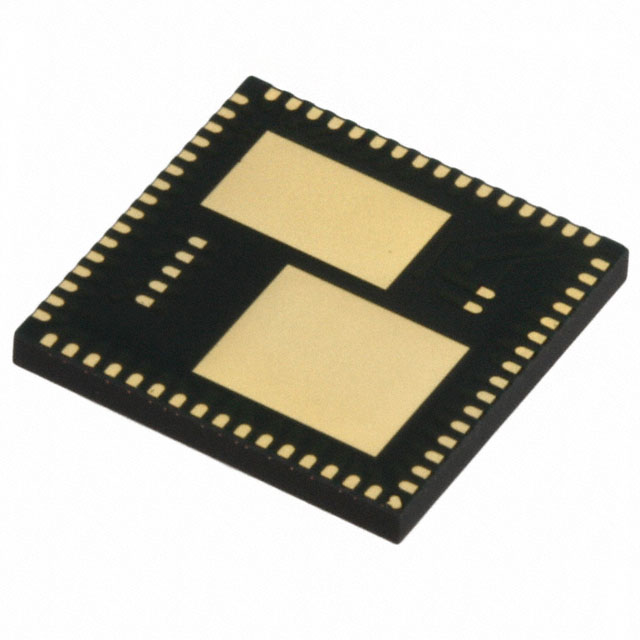

lmages are for reference only.MC13211
IC RF TXRX+MCU 802.15.4 71LGA
Datasheet71-VFLGA Exposed Pad
53,746 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IC RF TxRx + MCU 802.15.4 2.4GHz 71-VFLGA Exposed Pad
MC13211
| Category | RF and Wireless - RF Transceiver ICs - |
| Manufacturer | Freescale Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | TxRx + MCU |
| RF Family/Standard | 802.15.4 |
| Protocol | - |
| Modulation | DSSS, O-QPSK |
| Frequency | 2.4GHz |
| Data Rate (Max) | 250kbps |
| Power - Output | 3dBm |
| Sensitivity | -92dBm |
| Memory Size | 16kB Flash, 1kB RAM |
| Serial Interfaces | I2C, SPI |
| GPIO | 32 |
| Voltage - Supply | 2V ~ 3.4V |
| Current - Receiving | 37mA |
| Current - Transmitting | 30mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 71-VFLGA Exposed Pad |
| Supplier Device Package | 71-LGA (9x9) |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | MC13211 | MC13213 | MC13213R2 | MC13213R2 |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC RF TXRX+MCU 802.15.4 71LGA | IC RF TXRX+MCU 802.15.4 71LGA | MICROPROCESSOR CIRCUIT, CMOS, PB | IC RF TXRX+MCU 802.15.4 71LGA |
| Series | - | - | - | - |
| Packaging | Tray | Tray | Bulk | Tape & Reel (TR) |
