MC17XSG500EK

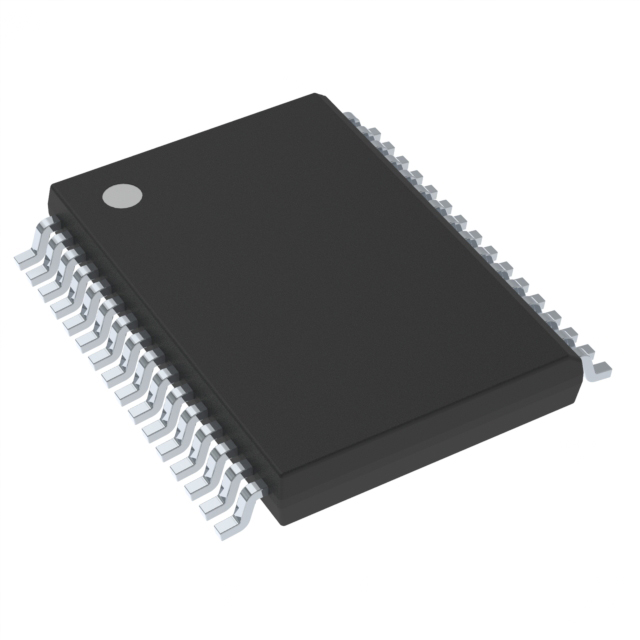

lmages are for reference only.MC17XSG500EK
IC PWR SWITCH N-CHAN 1:1 32HSOP
Datasheet32-SSOP (0.295", 7.50mm Width) Exposed Pad
87,605 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:1 N-Channel 5.5A 32-HSOP
MC17XSG500EK
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | NXP USA Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Switch Type | General Purpose |
| Number of Outputs | 6 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 7V ~ 30V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 5.5A |
| Rds On (Typ) | 17mOhm |
| Input Type | - |
| Features | Internal PWM |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-HSOP |
| Package / Case | 32-SSOP (0.295", 7.50mm Width) Exposed Pad |
| Base Product Number | MC17XSG500 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | MC17XSG500DEK | MC17XSG500DEKR2 | MC17XSG500EKR2 | MC17XS6400BEK |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | HIGH-SIDE SWITCH, 32V, PENTA 17M | HIGH-SIDE SWITCH, 32V, PENTA 17M | IC PWR SWITCH N-CHAN 1:1 32HSOP | IC PWR SWITCH N-CHAN 1:1 32HSOP |
| Series | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
