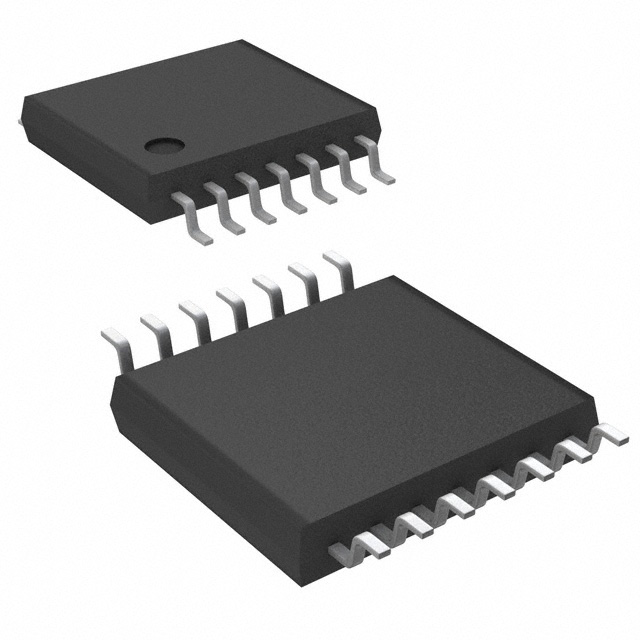

NOR Gate IC 4 Channel 14-TSSOP
MC74ACT02DTR2
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | onsemi |
| Series | 74ACT |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Base Product Number | 74ACT02 |
| Logic Type | NOR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 4 µA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 9.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MC74ACT02DTR2G | MC74ACT02D | MC74ACT02DG | MC74ACT02DR2G |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC GATE NOR 4CH 2-INP 14TSSOP | IC GATE NOR 4CH 2-INP 14SOIC | IC GATE NOR 4CH 2-INP 14SOIC | IC GATE NOR 4CH 2-INP 14SOIC |
| Series | 74ACT | 74ACT | 74ACT | 74ACT |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
