MC9S08DN32AMLH

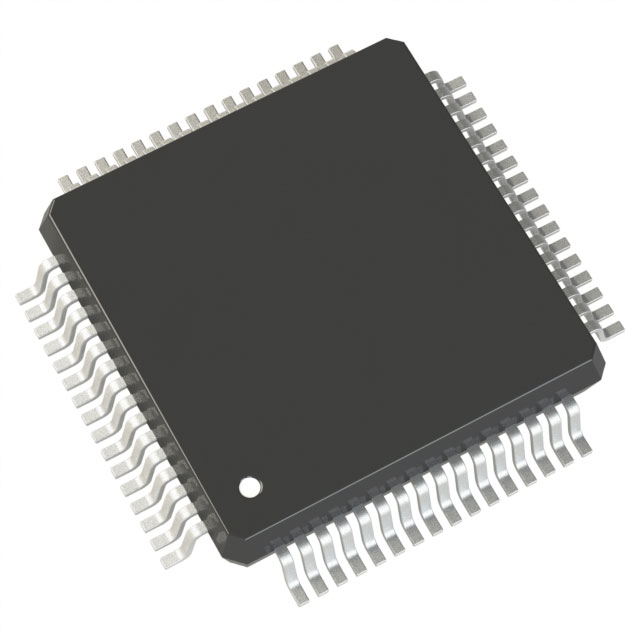

lmages are for reference only.MC9S08DN32AMLH
IC MCU 8BIT 32KB FLASH 64LQFP
Datasheet64-LQFP
83,065 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
HCS08 S08 Microcontroller IC 8-Bit 40MHz 32KB (32K x 8) FLASH 64-LQFP (10x10)
MC9S08DN32AMLH
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Freescale Semiconductor - NXP |
| Series | S08 |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Core Processor | HCS08 |
| Core Size | 8-Bit |
| Speed | 40MHz |
| Connectivity | I2C, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 54 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 1.5K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 16x12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Package / Case | 64-LQFP |
| Base Product Number | MC9S08 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | MC9S08DN32AMLC | MC9S08DN32AMLF | MC9S08DN32AMLF | MC9S08DN32AMLH |
| Manufacturer | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | Not applicable | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MCU 8BIT 32KB FLASH 32LQFP | IC MCU 8BIT 32KB FLASH 48LQFP | IC MCU 8BIT 32KB FLASH 48LQFP | IC MCU 8BIT 32KB FLASH 64LQFP |
| Series | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. | NXP USA Inc. |
| Packaging | Tray | Bulk | Tray | Tray |
