S08 S08 Microcontroller IC 8-Bit 20MHz 4KB (4K x 8) FLASH 16-TSSOP
MC9S08QB4CTG
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Freescale Semiconductor |
| Series | S08 |
| Packaging | Bulk |
| RoHS Status | |
| Core Processor | S08 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | LINbus, SCI |
| Peripherals | LVD, PWM, WDT |
| Number of I/O | 12 |
| Program Memory Size | 4KB (4K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 8x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-TSSOP |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Base Product Number | MC9S08 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MC9S08QB4CTG | MC9S08QB4CGK | MC9S08QB4CGK | MC9S08QB4CWL |
| Manufacturer | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. | Freescale Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||

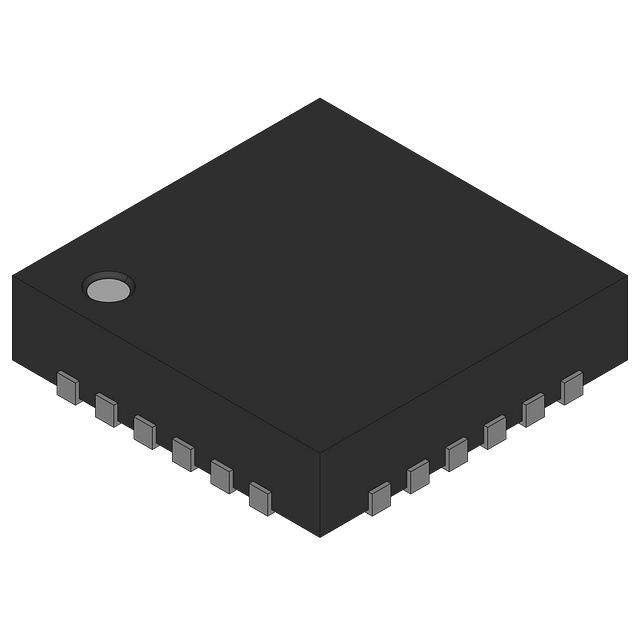

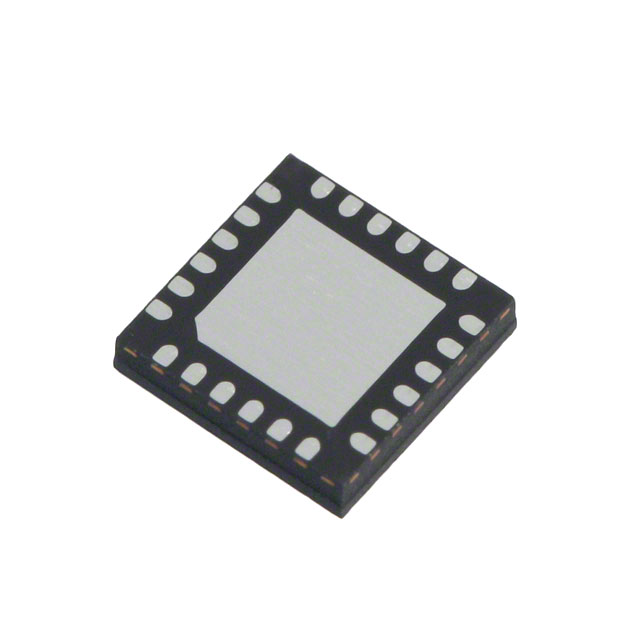

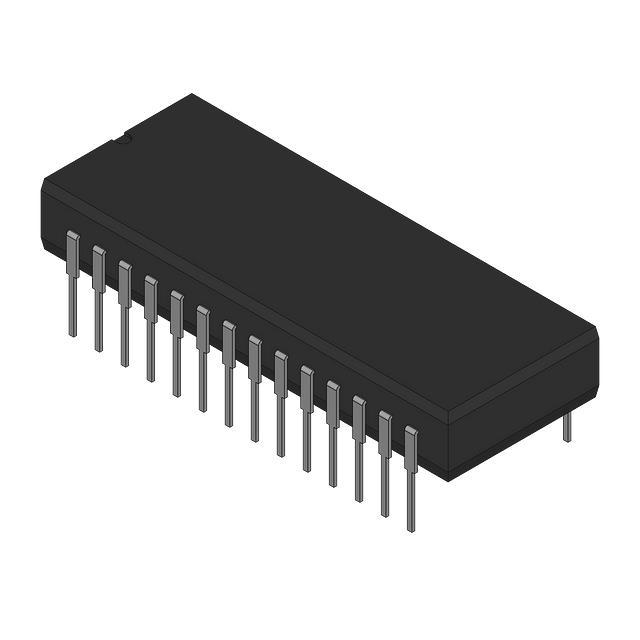

| Description | IC MCU 8BIT 4KB FLASH 16TSSOP | IC MCU 8BIT 4KB FLASH 24QFN | IC MCU 8BIT 4KB FLASH 24QFN | IC MCU 8BIT 4KB FLASH 28SOIC |
| Series | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. | Freescale Semiconductor |
| Packaging | Tube | Bulk | Tray | Bulk |
