MCL1005-4R3-R

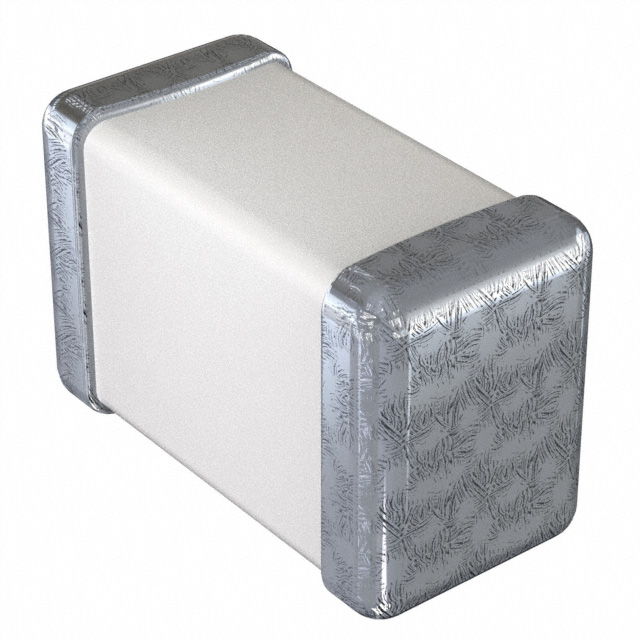

lmages are for reference only.MCL1005-4R3-R
FIXED IND 4.3NH 300MA 200MOHM SM
Datasheet0402 (1005 Metric)
18,473 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.3 nH Unshielded Multilayer Inductor 300 mA 200mOhm Max 0402 (1005 Metric)
MCL1005-4R3-R
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Eaton - Electronics Division |
| Series | MCL1005 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Multilayer |
| Material - Core | - |
| Inductance | 4.3 nH |
| Tolerance | ±0.3nH |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 200mOhm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 4GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MCL1005-4R7-R | MCL1005-100-R | MCL1005-101-R | MCL1005-120-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 4.7NH 300MA 250MOHM SM | FIXED IND 10NH 300MA 400MOHM SMD | FIXED IND 100NH 150MA 2.6OHM SMD | FIXED IND 12NH 300MA 500MOHM SMD |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
