MCL1608V2-151-R

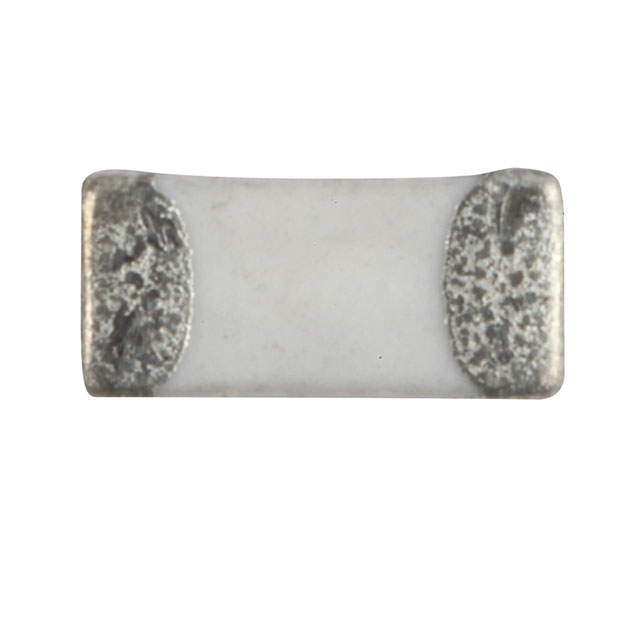

lmages are for reference only.MCL1608V2-151-R
FIXED IND 150NH 200MA 1.6OHM SMD
Datasheet0603 (1608 Metric)
52,082 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
150 nH Unshielded Multilayer Inductor 200 mA 1.6Ohm Max 0603 (1608 Metric)
MCL1608V2-151-R
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Eaton - Electronics Division |
| Series | MCL1608V2 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Multilayer |
| Material - Core | - |
| Inductance | 150 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 200 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.6Ohm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 500MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MCL1608V2-150-R | MCL1608V2-100-R | MCL1608V2-101-R | MCL1608V2-120-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | FIXED IND 15NH 300MA 500MOHM SMD | FIXED IND 10NH 300MA 400MOHM SMD | FIXED IND 100NH 300MA 1.2OHM SMD | FIXED IND 12NH 300MA 450MOHM SMD |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
