MCP41HV51T-104E/MQ
lmages are for reference only.MCP41HV51T-104E/MQ
IC DGT POT 100KOHM 256TAP 20QFN
Datasheet20-VQFN Exposed Pad
70,009 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Digital Potentiometer 100k Ohm 1 Circuit 256 Taps SPI Interface 20-VQFN (5x5)
MCP41HV51T-104E/MQ
| Category | Integrated Circuits (ICs) - Data Acquisition - Digital Potentiometers |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Taper | Linear |
| Configuration | Potentiometer |
| Number of Circuits | 1 |
| Number of Taps | 256 |
| Resistance (Ohms) | 100k |
| Interface | SPI |
| Memory Type | Volatile |
| Voltage - Supply | 1.8V ~ 5.5V, 10V ~ 36V, ±5V ~ 18V |
| Features | - |
| Tolerance | ±20% |
| Temperature Coefficient (Typ) | 100ppm/°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-VQFN (5x5) |
| Package / Case | 20-VQFN Exposed Pad |
| Operating Temperature | -40°C ~ 125°C |
| Resistance - Wiper (Ohms) (Typ) | 145 |
| Base Product Number | MCP41HV51 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | MCP41HV51T-104E/MQ | MCP41HV51T-104E/ST | MCP41HV51T-104E/ST | MCP41HV51T-103E/MQ |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

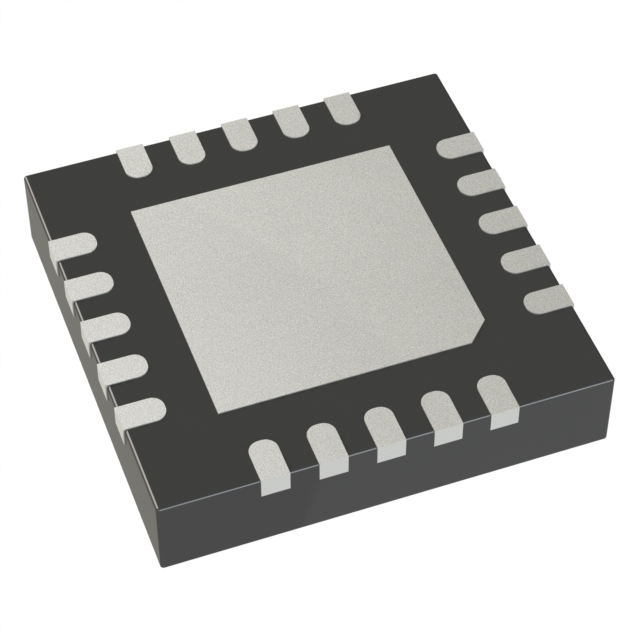

| Description | IC DGT POT 100KOHM 256TAP 20QFN | IC DGT POT 100KOHM 256TP 14TSSOP | IC DGT POT 100KOHM 256TP 14TSSOP | IC DGTL POT 10KOHM 256TAP 20QFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
