MCQ4503B-TP

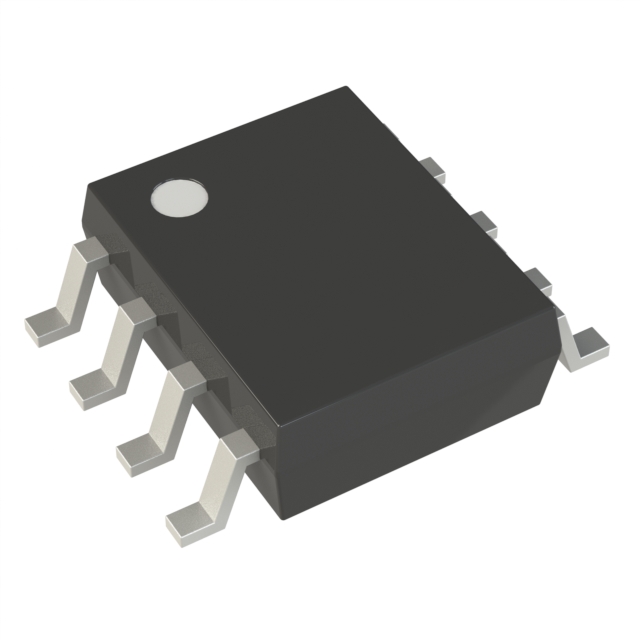

lmages are for reference only.MCQ4503B-TP
MOSFET N/P-CH 30V 5.6A 8SOP
Datasheet8-SOIC (0.154", 3.90mm Width)
14,043 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 30V 5.6A (Ta), 4.4A (Ta) 2W Surface Mount 8-SOP
MCQ4503B-TP
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | N and P-Channel |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 5.6A (Ta), 4.4A (Ta) |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 5.6A, 10V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA, 1.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 4.8nC @ 4.5V, 7.2nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 535pF @ 15V, 680pF @ 15V |
| Power - Max | 2W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
| Base Product Number | MCQ4503 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | MCQ4503-TP | MCQ4503A-TP | MCQ4559-TP | MCQ4559A-TP |
| Manufacturer | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | MOSFET N/P-CH 30V 6.3A/8.6A 8SOP | MOSFET 30V 6.5A 8SOP | MOSFET N/P-CH 60V 4.5A/3.5A 8SOP | MOSFET N/P-CH 60V 4.5A/3.5A 8SOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
