Product CatalogPart Number
MCR-B-S-RA-SMT-CS14-T/R
Manufacturer
Adam TechDescription
MICRO USB, RIGHT ANGLE, SURFACE
Datasheet
DatasheetPackage
-
In Stock
11,317 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MCR-B-S-RA-SMT-CS14-T/R
MCR-B-S-RA-SMT-CS14-T/R
lmages are for reference only.Payment Methods
Delivery Services
USB - micro B Receptacle Connector 5 Position Surface Mount, Right Angle
Quick Inquiry
MCR-B-S-RA-SMT-CS14-T/R
Specifications
| Category | Connectors, Interconnects - USB-DVI-HDMI Connectors - USB-DVI-HDMI Connector Assemblies |
| Manufacturer | Adam Tech |
| Series | MCR |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | USB - micro B |
| Number of Contacts | 5 |
| Gender | Receptacle |
| Specifications | - |
| Mounting Type | Surface Mount, Right Angle |
| Mounting Feature | Horizontal |
| Termination | Solder |
| Features | Board Guide, Solder Retention |
| Ingress Protection | - |
| Operating Temperature | -30°C ~ 80°C |
| Number of Ports | 1 |
| Current Rating (Amps) | 1A |
| Voltage - Rated | - |
| Mating Cycles | - |
| Shielding | Shielded |
| Contact Finish | Gold |
| Shell/Shielding Material | Steel, Stainless |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Base Product Number | MCR-B-S-R |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

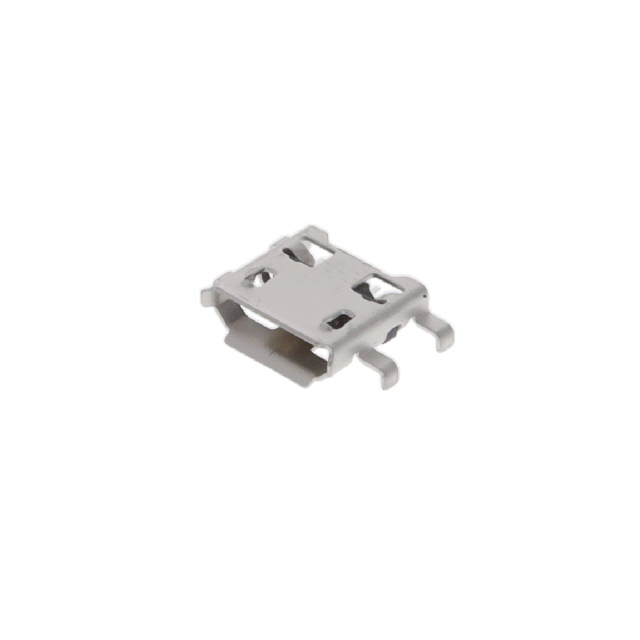

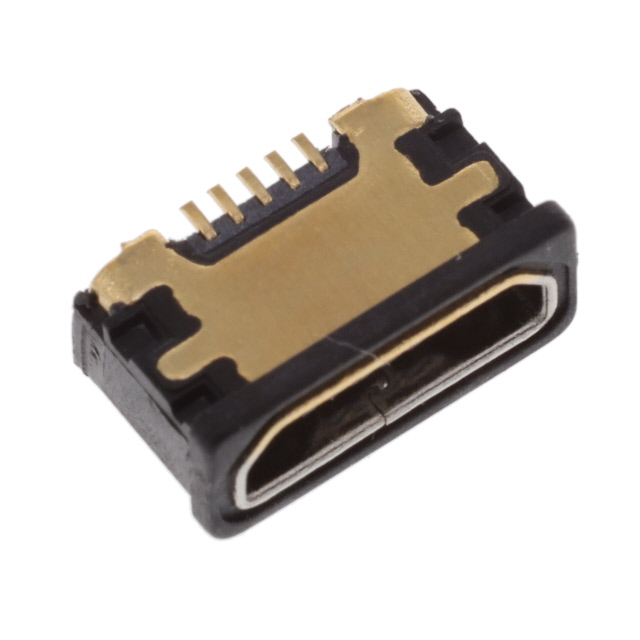

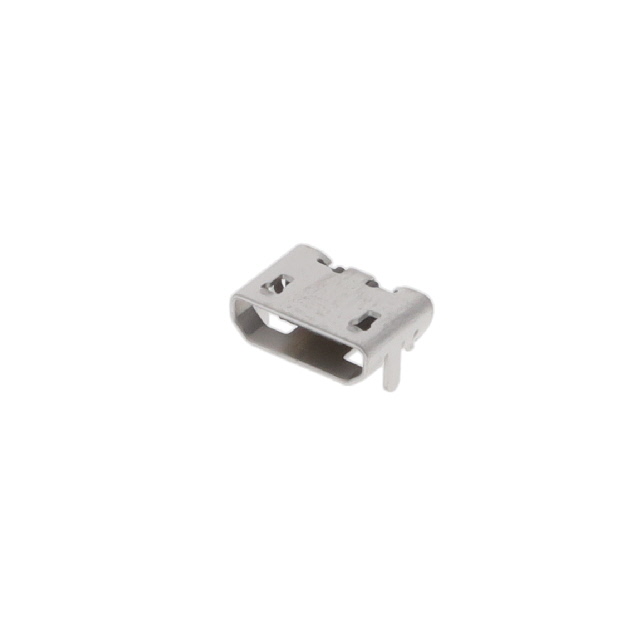

| Part Number | MCR-B-S-RA-SMT-CS5A-NF-T/R | MCR-B-S-RA-SMT-EH4B-T/R | MCR-B-S-RA-SMT-NP-CS6B-T/R | MCR-B-S-RA-TSMT-CS1-WP-T/R |
| Manufacturer | Adam Tech | Adam Tech | Adam Tech | Adam Tech |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MICRO USB, TYPE B, RIGHT ANGLE, | MICRO USB, TYPE B, RIGHT ANGLE, | MICRO USB, TYPE B, RIGHT ANGLE, | MICRO USB, TYPE B, RIGHT ANGLE, |
| Series | MCR | MCR | MCR | MCR |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
