Product CatalogPart Number
MCR12DCNT4
Manufacturer
onsemiDescription
SCR 800V 12A DPAK
Datasheet
DatasheetPackage
TO-252-3, DPAK (2 Leads + Tab), SC-63
In Stock
75,844 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MCR12DCNT4
MCR12DCNT4
lmages are for reference only.Payment Methods
Delivery Services
SCR 800 V 12 A Standard Recovery Surface Mount DPAK
Quick Inquiry
MCR12DCNT4
Specifications
| Category | Discrete Semiconductor Products - Thyristors - SCRs |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | RoHS non-compliant |
| Voltage - Off State | 800 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1 V |
| Current - Gate Trigger (Igt) (Max) | 20 mA |
| Current - On State (It (AV)) (Max) | 7.8 A |
| Current - Hold (Ih) (Max) | 40 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 100A @ 60Hz |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Voltage - On State (Vtm) (Max) | 1.9 V |
| Current - On State (It (RMS)) (Max) | 12 A |
| Current - Off State (Max) | 10 µA |
| Base Product Number | MCR12 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | MCR12DCMT4G | MCR12DCNT4G | MCR12LDG | MCR100F-8-TP |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | onsemi | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |

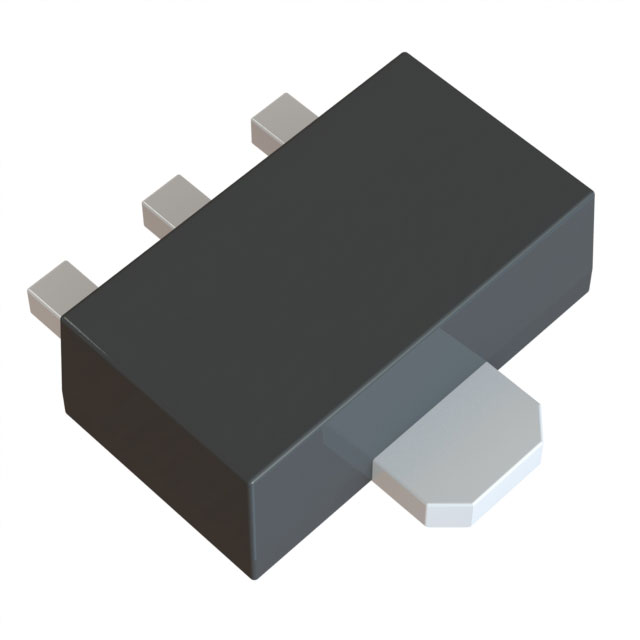

| Description | SCR 600V 12A DPAK | SCR 800V 12A DPAK | SCR 400V 12A TO220AB | SCR 600V 800MA SOT89 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tube | Tape & Reel (TR) |
