MF-ASML010/6-2

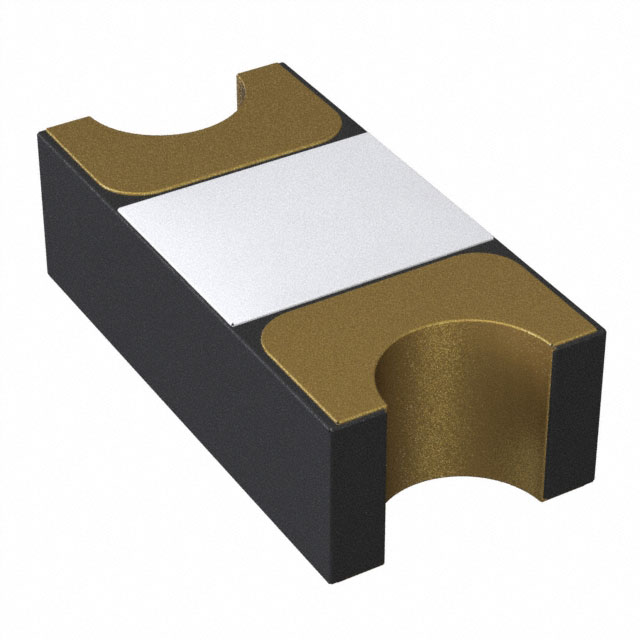

lmages are for reference only.MF-ASML010/6-2
PTC RESET FUSE 6V 100MA 0402
Datasheet0402 (1005 Metric), Concave
32,131 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 6V 100 mA Ih Surface Mount 0402 (1005 Metric), Concave
MF-ASML010/6-2
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Bourns Inc. |
| Series | Multifuse®, MF-ASML/X |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 6V |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Trip (It) | 300 mA |
| Current - Max | 50 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric), Concave |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.024" (0.60mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
| Time to Trip | 1 s |
| Resistance - Initial (Ri) (Min) | 150 mOhms |
| Resistance - Post Trip (R1) (Max) | 3 Ohms |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MF-ASML020/6-2 | MF-ASML035-2 | MF-ASML035/6-2 | MF-ASML050/6-2 |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | PTC RESET FUSE 6V 200MA 0402 | Circuit Protection | PTC RESET FUSE 6V 350MA 0402 | PTC RESET FUSE 6V 500MA 0402 |
| Series | Multifuse®, MF-ASML/X | * | Multifuse®, MF-ASML/X | Multifuse®, MF-ASML/X |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Bulk | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
