MF-MSMF020-2

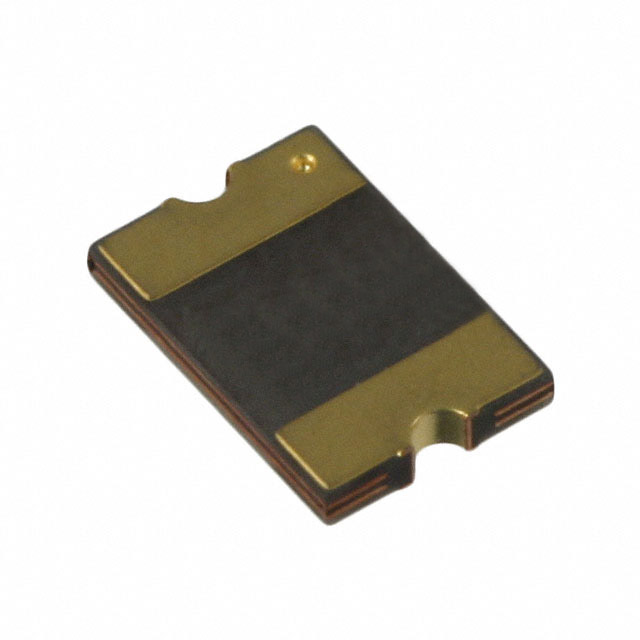

lmages are for reference only.MF-MSMF020-2
PTC RESET FUSE 30V 200MA 1812
Datasheet1812 (4532 Metric), Concave
107,903 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 30V 200 mA Ih Surface Mount 1812 (4532 Metric), Concave
MF-MSMF020-2
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Bourns Inc. |
| Series | Multifuse®, MF-MSMF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Trip (It) | 400 mA |
| Current - Max | 80 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.043" (1.10mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
| Time to Trip | 60 ms |
| Resistance - Initial (Ri) (Min) | 400 mOhms |
| Resistance - Post Trip (R1) (Max) | 6 Ohms |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Base Product Number | MF-MSMF |
| Product Attribute |  |
 |
 |
 |
| Part Number | MF-MSMF020/60-2 | MF-MSMD014-2 | MF-MSMD020-2 | MF-MSMD050-2 |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | PTC RESET FUSE 60V 200MA 1812 | PTC RESET FUSE 60V 140MA 1812 | PTC RESET FUSE 30V 200MA 1812 | PTC RESET FUSE 15V 500MA 1812 |
| Series | Multifuse®, MF-MSMF | Multifuse®, MF-MSMD | Multifuse®, MF-MSMD | Multifuse®, MF-MSMD |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT)--> |
