MFL0603R5100FB

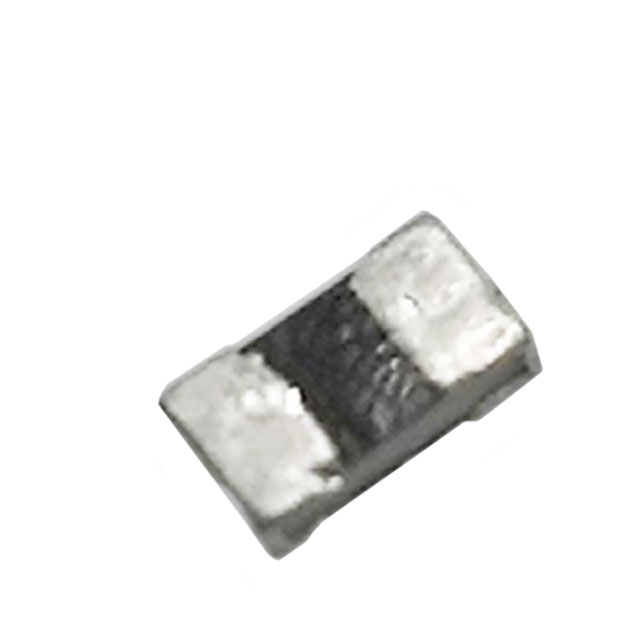

lmages are for reference only.MFL0603R5100FB
RES 0.51 OHM 1% 1/8W 0603
Datasheet0603 (1608 Metric)
60,021 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
510 mOhms ±1% 0.125W, 1/8W Chip Resistor 0603 (1608 Metric) Current Sense, Moisture Resistant Metal Film
MFL0603R5100FB
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Eaton - Electronics Division |
| Series | MFL |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 510 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.125W, 1/8W |
| Composition | Metal Film |
| Features | Current Sense, Moisture Resistant |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | - |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MFL0603R0100FA | MFL0603R0150FA | MFL0603R0160FA | MFL0603R0200FA |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 0.01 OHM 1% 1/4W 0603 | RES 0.015 OHM 1% 1/4W 0603 | RES 0.016 OHM 1% 1/4W 0603 | RES 0.02 OHM 1% 1/4W 0603 |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
