MGJ1D151802VMC-R7
lmages are for reference only.MGJ1D151802VMC-R7
DC-DC SM 15-18/2.5V
Datasheet24-SMD Module, 12 Leads
55,865 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 18V -2.5V 49mA, 49mA 13.5V - 16.5V Input
MGJ1D151802VMC-R7
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | MGJ1V(1W) |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 13.5V |
| Voltage - Input (Max) | 16.5V |
| Voltage - Output 1 | 18V |
| Voltage - Output 2 | -2.5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 49mA, 49mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 71% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-SMD Module, 12 Leads |
| Size / Dimension | 0.63" L x 0.47" W x 0.18" H (16.0mm x 12.0mm x 4.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | cURus |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 5.2 kV |
| Product Attribute |  |
 |
 |
 |

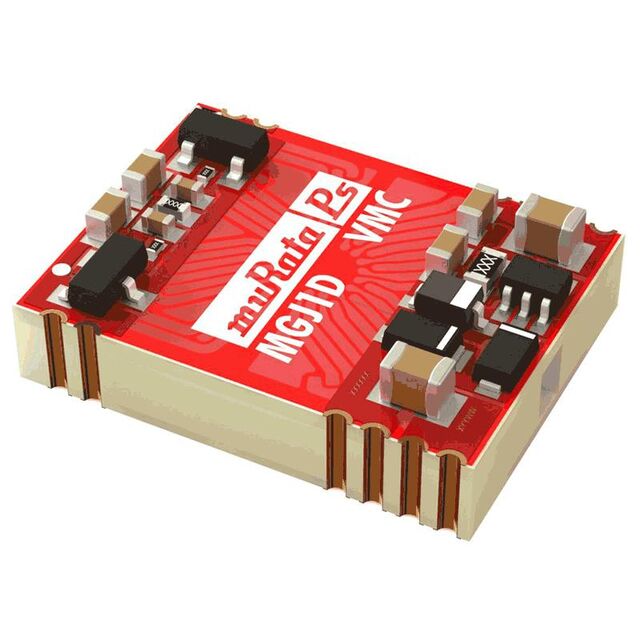

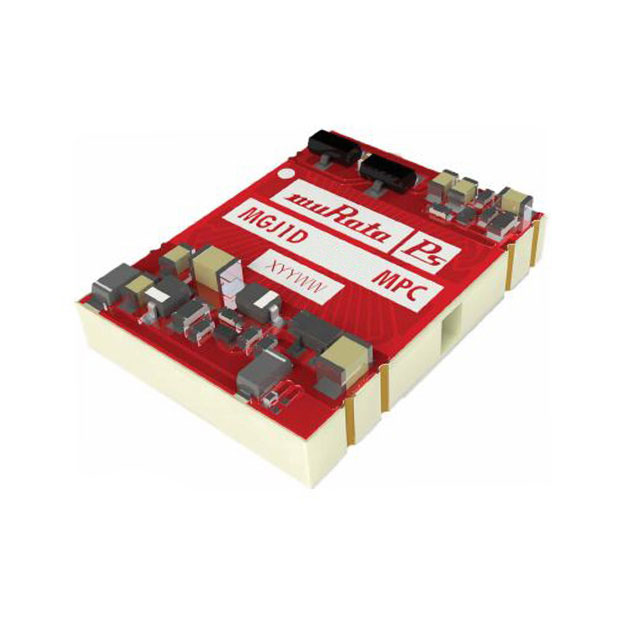

| Part Number | MGJ1D151802VMC-R13 | MGJ1D151503VMC-R13 | MGJ1D151503VMC-R7 | MGJ1D151505MPC-R7 |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC-DC SM 15-18/2.5V | DC-DC SM 15-15/3.3V | DC-DC SM 15-15/3.3V | DC DC CONVERTER 15V -5V 1W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
