MGJ2D242003SC

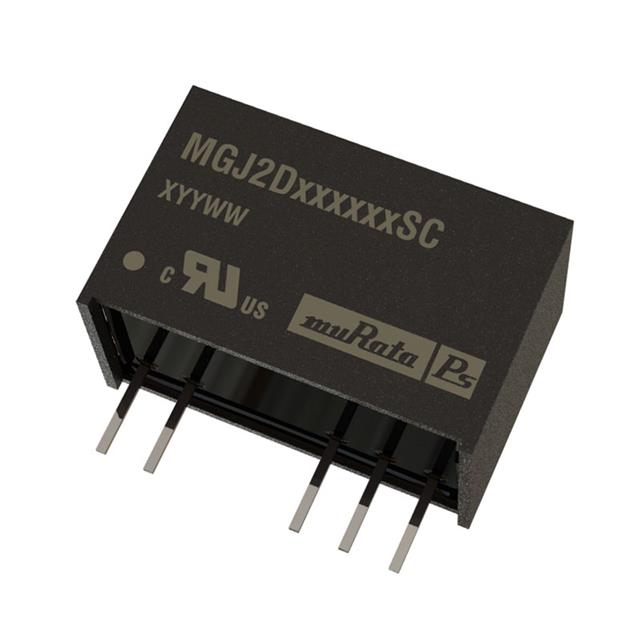

lmages are for reference only.MGJ2D242003SC
DC DC CONVERTER 20V -3.5V 2W
Datasheet7-SIP Module, 5 Leads
89,688 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 20V -3.5V 80mA, 80mA 21.6V - 26.4V Input
MGJ2D242003SC
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | MGJ2 (2W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 21.6V |
| Voltage - Input (Max) | 26.4V |
| Voltage - Output 1 | 20V |
| Voltage - Output 2 | -3.5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 80mA, 80mA |
| Power (Watts) | 2 W |
| Applications | ITE (Commercial), Medical |
| Features | - |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 82% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | cURus |
| Standard Number | - |
| Base Product Number | MGJ2D24 |
| Voltage - Isolation | 5.2 kV |
| Product Attribute |  |
|
 |
 |

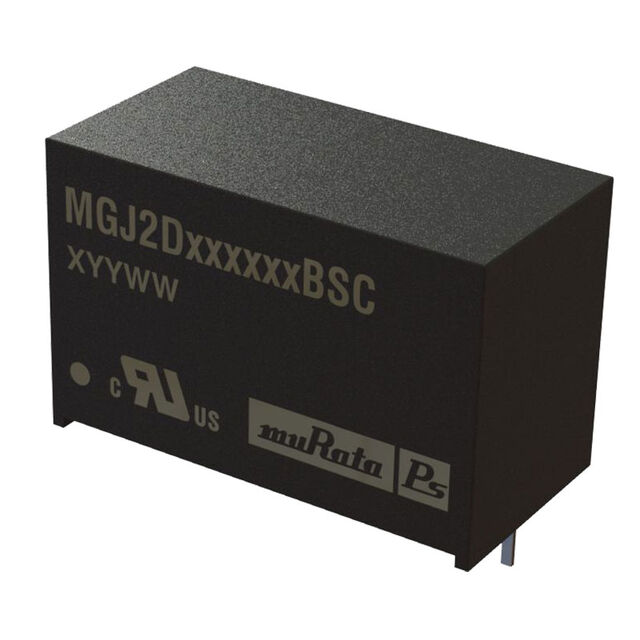

| Part Number | MGJ2D242003BSC | MGJ2D242003BSC | MGJ2D242005BSC | MGJ2D242005SC |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC/DC 2W TH 24-20/3.3V 5.4KV SIP | DC/DC 2W TH 24-20/3.3V 5.4KV SIP | DC/DC 2W TH 24-20/5V 5.4KV SIP | DC DC CONVERTER 20V -5V 2W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tube | Tube | Tube | Tube |
