MIC2214-AABML-TR

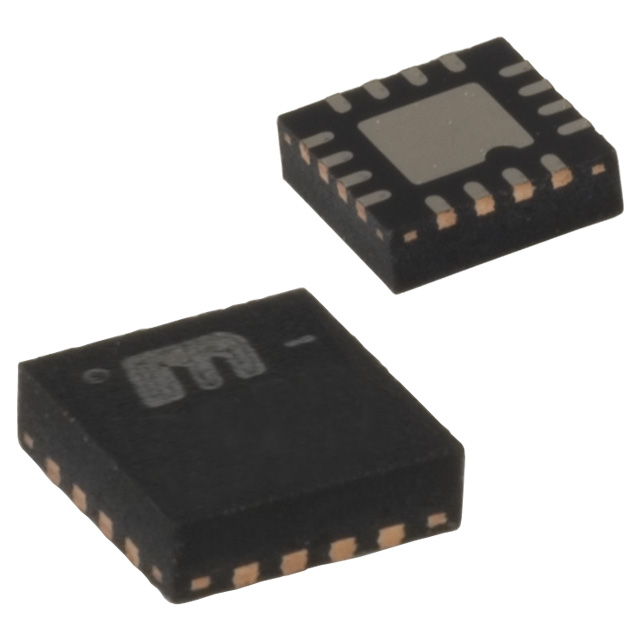

lmages are for reference only.MIC2214-AABML-TR
IC REG LINEAR POS ADJ 16MLF
Datasheet16-VQFN Exposed Pad, 16-MLF®
68,209 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable 2 Output 150mA, 300mA 16-MLF® (4x4)
MIC2214-AABML-TR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 5.5V |
| Voltage Dropout (Max) | 0.25V @ 150mA, 0.42V @ 300mA |
| Current - Output | 150mA, 300mA |
| Current - Quiescent (Iq) | 80 µA |
| PSRR | 60dB ~ 40dB (1KHz ~ 20kHz) |
| Control Features | Enable, Power On Reset |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad, 16-MLF® |
| Supplier Device Package | 16-MLF® (4x4) |
| Base Product Number | MIC2214 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MIC2214-AAYML-T5 | MIC2214-AAYML-TR | MIC2210-FMBML-TR | MIC2210-FMYML-TR |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | IC REG LINEAR POS ADJ 10MLF | IC REG LINEAR POS ADJ 16MLF | IC REG LINEAR 1.5V/2.8V 10MLF | IC REG LINEAR 1.5V/2.8V 10MLF |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
