Product CatalogPart Number
MIC5203-3.8YM4
Manufacturer
Micrel Inc.Description
IC REG LINEAR MICROCAP 80MA LDO
Datasheet
DatasheetPackage
TO-253-4, TO-253AA
In Stock
57,250 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MIC5203-3.8YM4
MIC5203-3.8YM4
lmages are for reference only.Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 80mA SOT-143
Quick Inquiry
MIC5203-3.8YM4
Specifications
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Micrel Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 3.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 80mA |
| Current - Output | 80mA |
| Current - Quiescent (Iq) | 750 µA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-253-4, TO-253AA |
| Supplier Device Package | SOT-143 |
| Base Product Number | - |
| Current - Supply (Max) | 3 mA |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

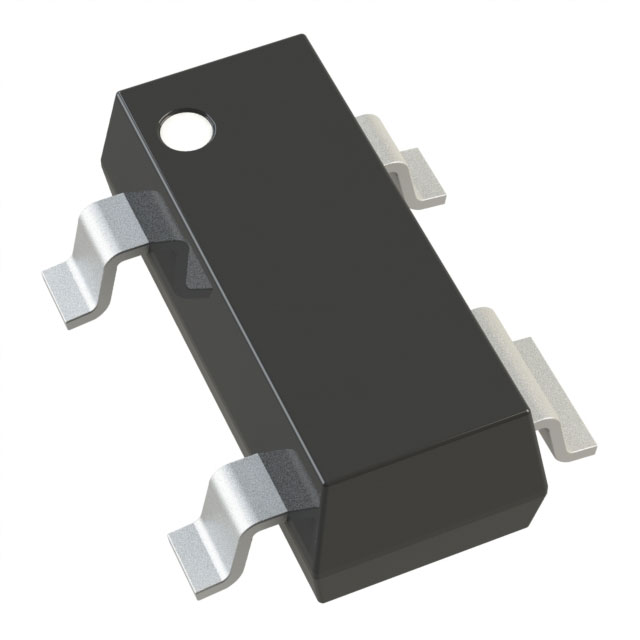

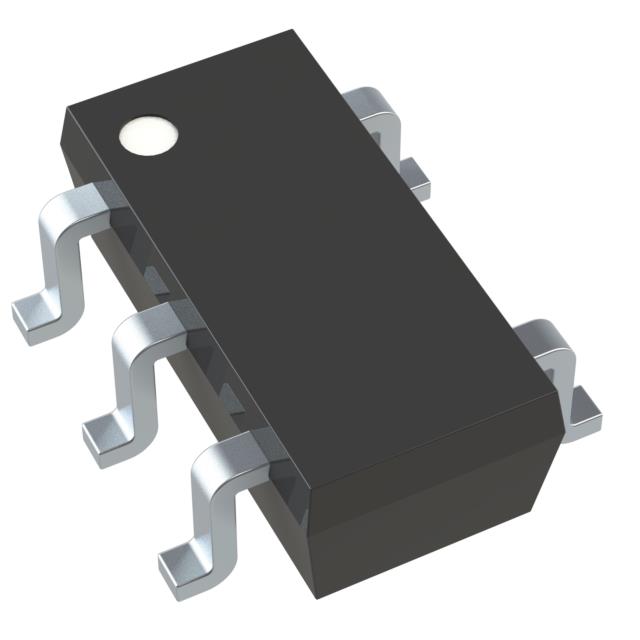

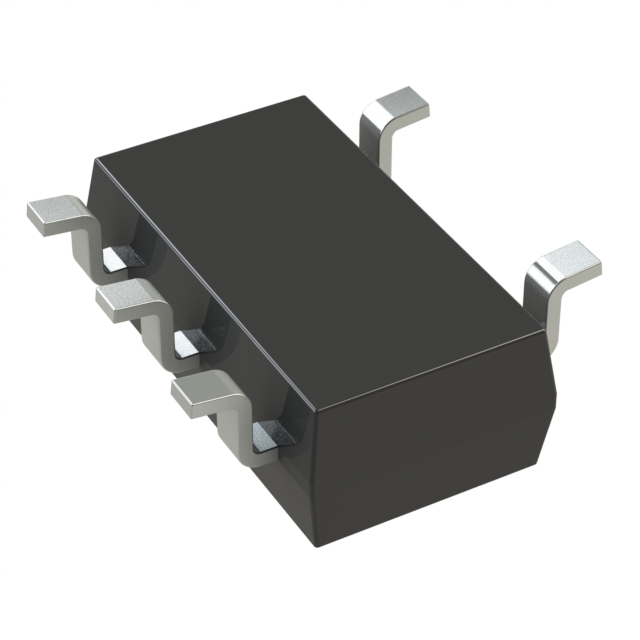

| Part Number | MIC5203-3.8YM4-TR | MIC5203-3.8YM5-TR | MIC5203-3.8BM4 TR | MIC5203-3.8BM5-TR |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | IC REG LINEAR 3.8V 80MA SOT143 | IC REG LINEAR 3.8V 80MA SOT23-5 | IC REG LINEAR 3.8V 80MA SOT143 | IC REG LINEAR 3.8V 80MA SOT23-5 |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
