MIC5249-2.8BMM
lmages are for reference only.MIC5249-2.8BMM
IC REG LINEAR 2.8V 300MA 8MSOP
Datasheet8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
98,863 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 8-MSOP
MIC5249-2.8BMM
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 200 µA |
| PSRR | 65dB (120Hz) |
| Control Features | Enable, Reset |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Base Product Number | MIC5249 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
|

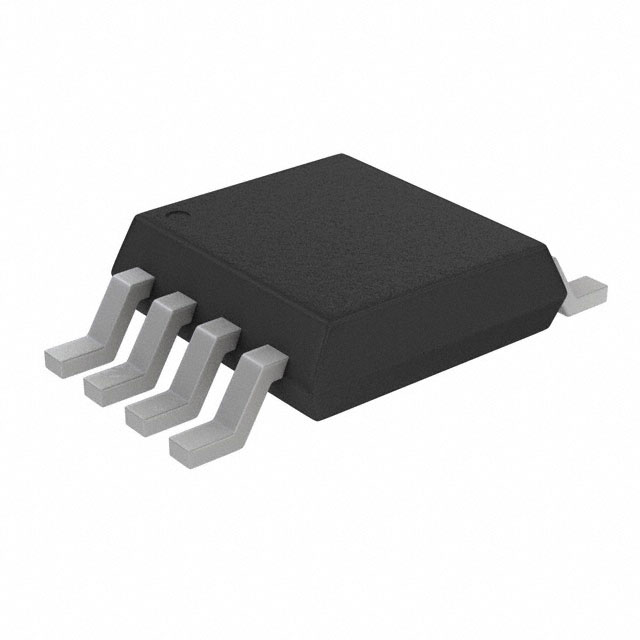

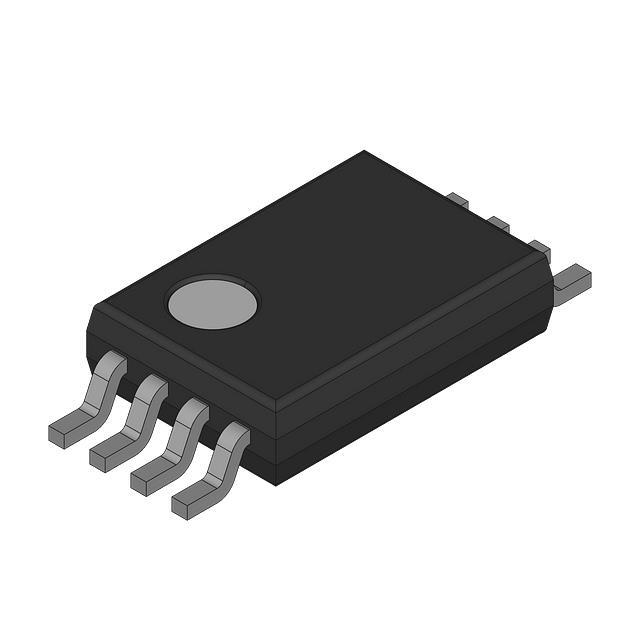

| Part Number | MIC5249-2.8BMM-TR | MIC5249-2.8BMMTR | MIC5249-2.85BMM | MIC5249-2.85BMM |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | IC REG LINEAR 2.8V 300MA 8MSOP | IC REG LIN LDO W/ POWER-ON RESET | IC REG LINEAR 2.85V 300MA 8MSOP | IC REG LINEAR 2.85V 300MA 8MSOP |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tape & Reel (TR) | Bulk | Bulk | Bulk |
