MIC5303-1.3YMT-TR

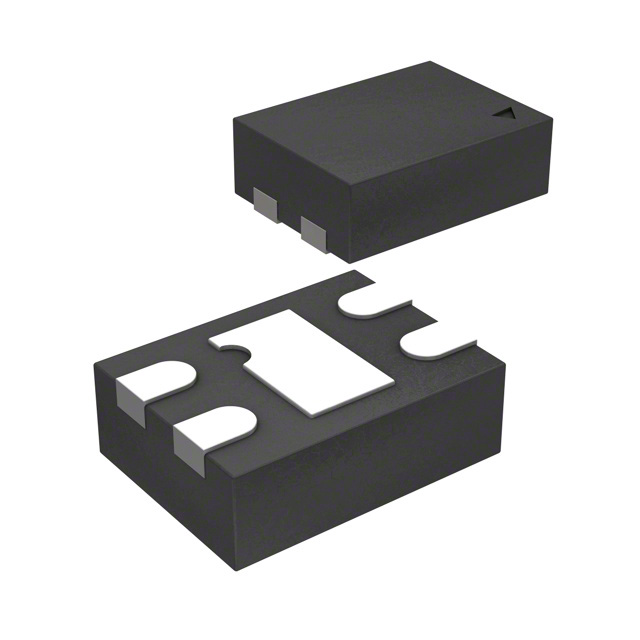

lmages are for reference only.MIC5303-1.3YMT-TR
IC REG LINEAR 1.3V 300MA 4TMLF
Datasheet4-VFDFN Exposed Pad, 4-TMLF®
74,122 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 4-TMLF® (1.2x1.6)
MIC5303-1.3YMT-TR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.2V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 120 µA |
| PSRR | 65dB ~ 42dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-VFDFN Exposed Pad, 4-TMLF® |
| Supplier Device Package | 4-TMLF® (1.2x1.6) |
| Base Product Number | MIC5303 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MIC5303-1.3YMT | MIC5303-1.5YMT | MIC5303-1.5YMT-TR | MIC5303-1.8YMT-TR |
| Manufacturer | Micrel Inc. | Micrel Inc. | Microchip Technology | Microchip Technology |
| RoHS Status | Not applicable | ROHS3 Compliant | ROHS3 Compliant | |
| Description | SINGLE 300 MA CMOS ULTRA SMALL U | IC REG LINEAR SGL 300MA CMOS | IC REG LINEAR 1.5V 300MA 4TMLF | IC REG LINEAR 1.8V 300MA 4TMLF |
| Series | Micrel Inc. | Micrel Inc. | Microchip Technology | Microchip Technology |
| Packaging | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
