MIC5305-2.5YML TR

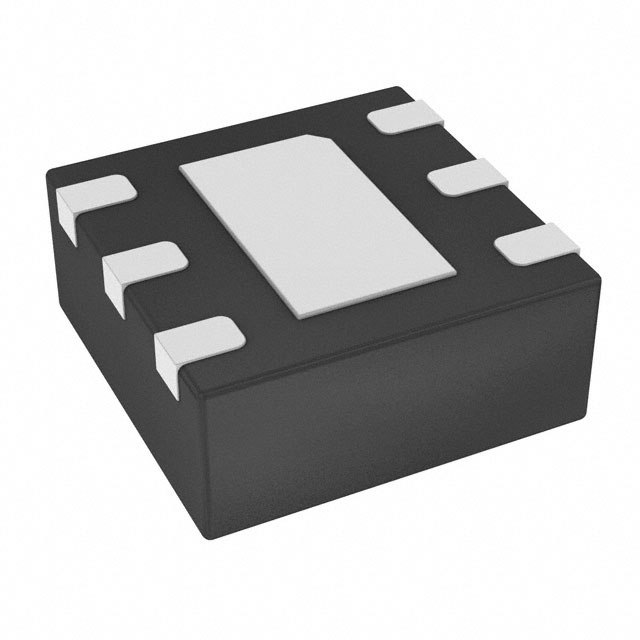

lmages are for reference only.MIC5305-2.5YML TR
MIC5305 -150 MA MICROCAP ULTRA-L
Datasheet6-VDFN Exposed Pad, 6-MLF®
65,984 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 6-MLF® (2x2)
MIC5305-2.5YML TR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Micrel Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| PSRR | 85dB ~ 65dB (1kHz ~ 10kHz) |
| Control Features | Current Limit, Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad, 6-MLF® |
| Supplier Device Package | 6-MLF® (2x2) |
| Base Product Number | - |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MIC5305-2.5YML | MIC5305-2.5YML-TR | MIC5305-2.5BD5-TR | MIC5305-2.5BML-TR |
| Manufacturer | Micrel Inc. | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | |
| Description | IC REG LINEAR 150MA MICROCAP | IC REG LINEAR 2.5V 150MA 6MLF | IC REG LIN 2.5V 150MA TSOT23-5 | IC REG LINEAR 2.5V 150MA 6MLF |
| Series | Micrel Inc. | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
