MIC5305-4.6YMT
lmages are for reference only.MIC5305-4.6YMT
IC REG LINEAR 150MA MICROCAP
Datasheet6-UDFN Exposed Pad, 6-TMLF®
28,698 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 6-TMLF® (2x2)
MIC5305-4.6YMT
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Micrel Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 4.6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.85V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| PSRR | 85dB ~ 65dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-UDFN Exposed Pad, 6-TMLF® |
| Supplier Device Package | 6-TMLF® (2x2) |
| Base Product Number | - |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

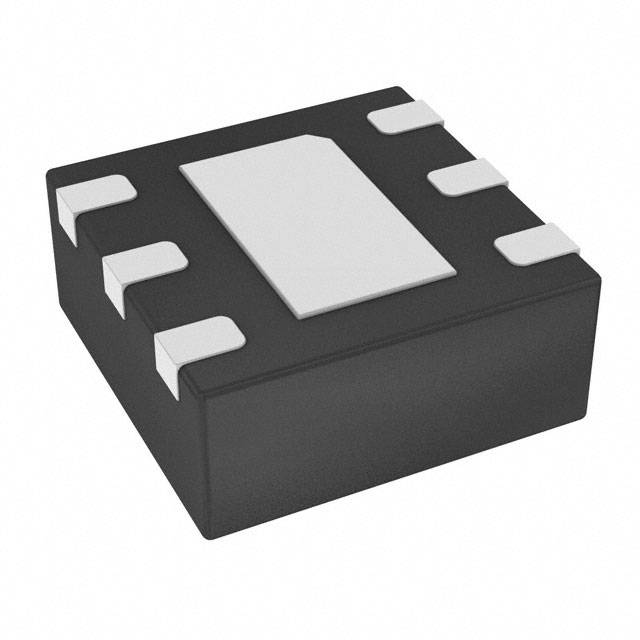

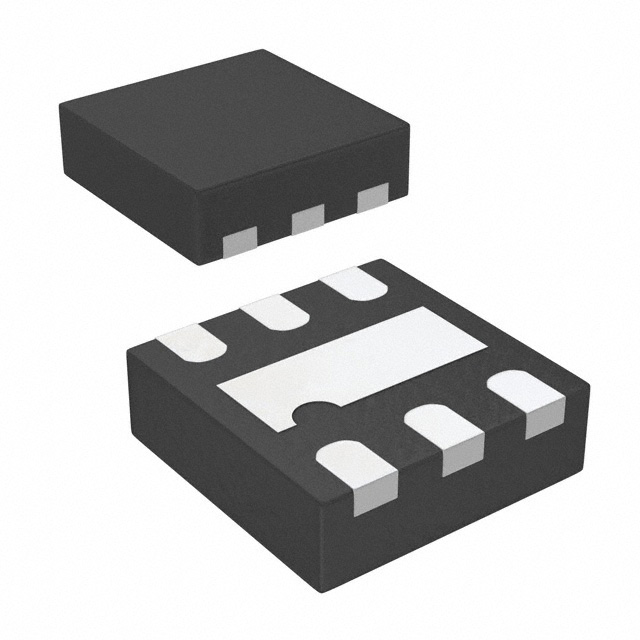

| Part Number | MIC5305-4.6YML-TR | MIC5305-4.6YMT-TR | MIC5305-1.5BD5-TR | MIC5305-1.5BML-TR |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | IC REG LINEAR 4.6V 150MA 6MLF | IC REG LINEAR 4.6V 150MA 6TMLF | IC REG LIN 1.5V 150MA TSOT23-5 | IC REG LINEAR 1.5V 150MA 6MLF |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
